75kw Ss316 Electric Smart Herb And Spice Grinder

Certification
China Jiangyin Brightsail Machinery Co.,Ltd. certification
China Jiangyin Brightsail Machinery Co.,Ltd. certification
Customer Reviews
Brightsail Machinery is a very good company,we have purchased their products for two times at present,their machines are very good and work well in our factory.Don't hesitate to contact them and make an order.

—— Medifoods Group

We purchased two processing line from Brightsail Machinery for making chickpea and spice powder,all of machines are working well in our factory.They are such a good supplier and a good choice for you to purchase the machines.

—— Imtiaz

I'm Online Chat Now

75kw Ss316 Electric Smart Herb And Spice Grinder

75kw Ss316 Electric Smart Herb And Spice Grinder
75kw Ss316 Electric Smart Herb And Spice Grinder
75kw Ss316 Electric Smart Herb And Spice Grinder 75kw Ss316 Electric Smart Herb And Spice Grinder

Large Image :  75kw Ss316 Electric Smart Herb And Spice Grinder

Product Details:
Place of Origin: China
Brand Name: Brightsail
Certification: CE ISO
Model Number: BSP
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Container
Delivery Time: 30-35 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month

75kw Ss316 Electric Smart Herb And Spice Grinder

Description
Product Name: Grain Pulverizer Powder Making Machine Ultrafine Pulverizer Application: Food,chemical,pharmaceutical,etc
Material: SS 304/316 Capacity: 20-1800kg/h
Input Size: <15 Mm Fineness: 60-2500 Mesh
Crusher Motor: 11-75kw Voltage: Customized
High Light:

ss316 spice grinder

,

ss316 herb grinder

,

75kw spice grinder

High Quality Electric Smart Herb And Spice Grinder In Sale

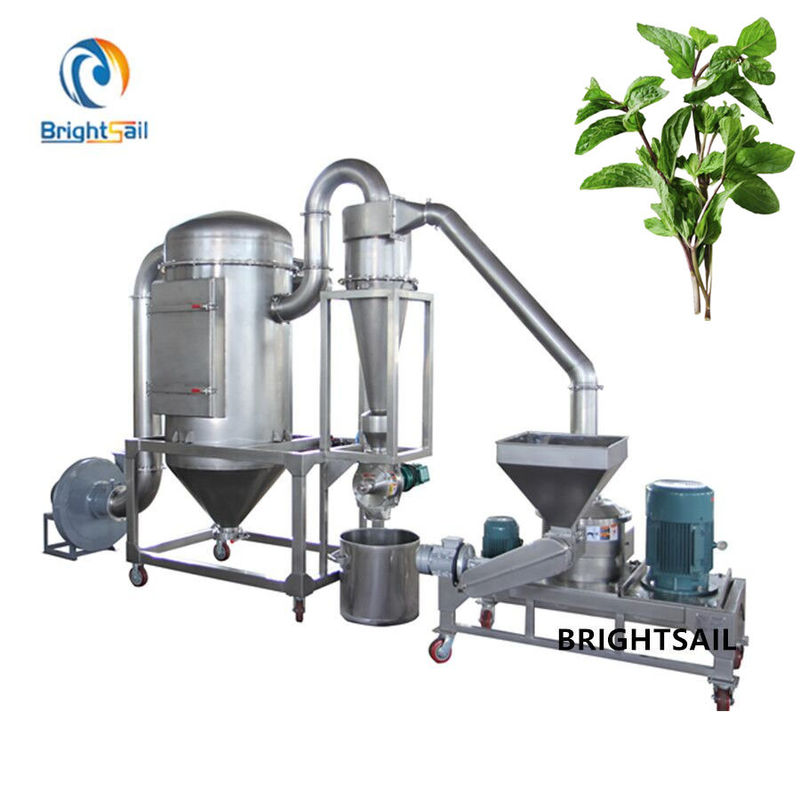

BSP dry herb grinder is made up of crusher, cyclone, dust collector, blower and electric control box with the capabilities of winnowing, non-sieve or mesh, equality of granule size, and continuous processing etc. It meets the international advanced level and is suitable for the material grinding by the trade of pharmaceutics, chemical, and foodstuff etc.

75kw Ss316 Electric Smart Herb And Spice Grinder 0



Working method:

Raw material is delivered to the grinding chamber via hopper by spiral feeder, and is cut and sheared by the high speed cutters, then the material is moved into the whirlwind separator and the sack dust catcher by the negative pressure sucking method, the ejection material meets the product requirement. That's why BSP herb grinder can make super fine powder and can be used as a fine powder grinder.



Main components:

1. Pulse dust box: collect dust in the dust box. There are multiple dust bags in the box, and the bag holder is also made of stainless steel, which is easy to disassemble. The pulse jet cleaning is used to collect dust very conveniently. 2. Crusher part: The left motor is a crushing motor, and the right motor is a classfifier motor. Small screw feeder is used to ensure uniform and controllable feeding speed. 3. The material enters the grinding chamber through the screw conveyor, where it is cut and ground by the rapidly rotating blade. The powder enters the classification chamber through the guide ring. 4. Cyclone part: The cyclone can separate dust and powder (particles). The rotary valve makes the powder output speed even, and is made of stainless steel. Easy to clean and disassemble.



Main features:

1) Simple structure, easy to install and maintain.

2) There is a water cooling jacket around the grinding chamber, and the bearing can cool the machine.

3) Motors, electrical appliances, bearings, and operating parts adopt world advanced brands.

4) There is no dust during the production process, and the dust can be collected in the dust removal box.

5) No need to screen, change the speed to change the particle size.



Drawing:

75kw Ss316 Electric Smart Herb And Spice Grinder 1





Technical data:

Model BSP-350 BSP-450 BSP-500 BSP-750
Input size(mm) <15 <15 <15 <15
Fineness(mesh) 60-2500 60-2500 60-2500 60-2500
Capacity(kg/h) 20-200 40-500 60-800 120-1800
Crush motor(kw) 11 18.5 30 55
Grade motot(kw) 1.5 4 5.5 11
Blower(kw) 7.5 11 18.5 37
Feed  motor(kw) 0.55 0.55 0.75 1.5
Discharge motor(kw) 0.75 0.75 1.1 1.5
Speed of principle axia(rpm) -6500 -5350 -4600 -3100
Grading impeller speed(rpm) 4000 4000 3500 3000
Weight(kg) 1600 1800 2300 3100







Our Company:

75kw Ss316 Electric Smart Herb And Spice Grinder 2

The company focuses on the research of powder equipment, such as roasters, 50kg cocoa roasters, chemical powder mixers, washing powder mixers, etc. Products are widely used in food, medicine, chemical and other industries and have won a good reputation.

At present, we have sold our products to more than 40 countries in the world. Brightsail is committed to developing new advanced technologies and methods on machines, as our goal is to be a reliable provider of creative and value-added process solutions.





Please connact us if you have any interests in our products.
