Product Details:
|
| Product Name: | Grain Pulverizer Powder Making Machine Ultrafine Pulverizer | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Material: | SS304/316 | Capacity: | 20-1800kg/h |
| Input Size: | <15mm | Fineness: | 60-2500 Mesh |
| Crusher Motor: | 11-75 Kw | Voltage: | Customized |
| High Light: | ss304 electric herb grinder,ss304 electric chemical herb grinder,1800kg/h electric herb grinder |
||
Hot Selling Electric Herb Grinder Suitable For A Variety Of Uses

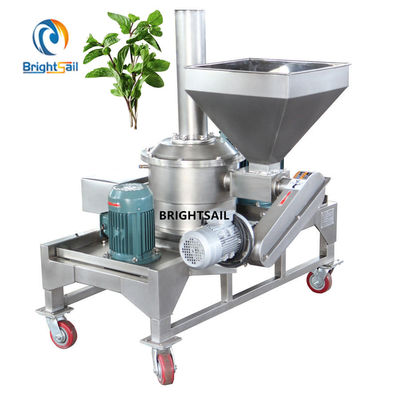

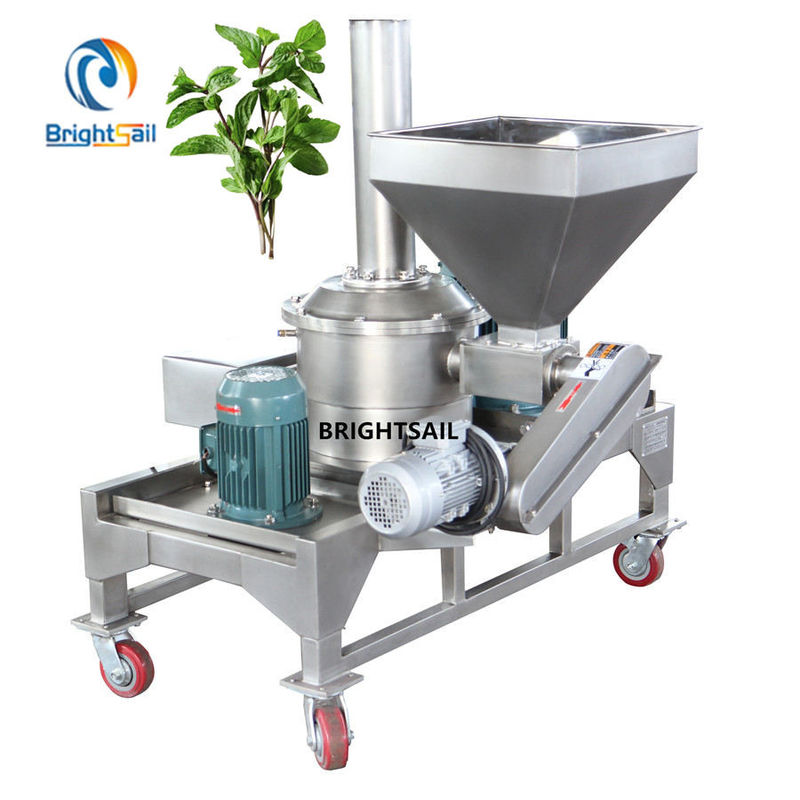

BSP metal herb grinder is composed of crusher, cyclone separator, dust collector, blower, electric control box, etc. it has the functions of winnowing, no screen, no net, uniform particle size and continuous processing. In line with the international advanced level, it is suitable for grinding materials in pharmaceutical, chemical and food industries.
Working method:
Raw material is delivered to the grinding chamber via hopper by spiral feeder, and is cut and sheared by the high speed cutters, then the material is moved into the whirlwind separator and the sack dust catcher by the negative pressure sucking method, the ejection material meets the product requirement. That's why BSP herb grinder machine can make super fine powder and can be used as a fine powder grinder.
Main components:
1. Pulse dust collector: collect dust in the dust collector. There are several dust bags in the box, and the dust bag holder is also made of stainless steel, which is easy to remove. Pulse spray cleaning is very convenient for dust collection.
2. Crusher part: left motor is crushing motor, right motor is classified electromechanical machine. A small screw feeder is used to ensure a uniform and controlled feed rate.
3. Materials enter the grinding chamber through the screw conveyor and are cut and ground in the grinding chamber by a rapidly rotating blade. The powder enters the grading chamber through a guide ring.
4. Cyclone Separator: Cyclone separator can separate dust and powder (particles). The rotary valve is made of stainless steel with uniform powder speed. Easy to clean and disassemble.
Main features:
1) The structure is simple and easy to install and maintain.
2) There are water cooling sleeves around the grinding chamber, and the bearings can cool the machine.
3) Motors, electrical appliances, bearings and operating parts adopt world advanced brands.
4) There is no dust in the production process, and the dust can be collected in the dust removal box.
5) The particle size can be changed by changing the speed without sieving.
Drawing:
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
