Product Details:
|
| Product Name: | Grain Pulverizer Powder Making Machine Ultrafine Pulverizer | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Material: | SS 304/316 | Capacity: | 20-1800kg/h |
| Input Size: | <15mm | Fineness: | 60-2500 Mesh |
| Crusher Motor: | 11-75 Kw | Voltage: | Customized |
| High Light: | 200kg/H Herbal Powder Machine,4000rpm Herbal Powder Machine,200kg/H Herb Powder Machine |
||
Multimodel Custom Herb Grinder Can Be Used In Many fields

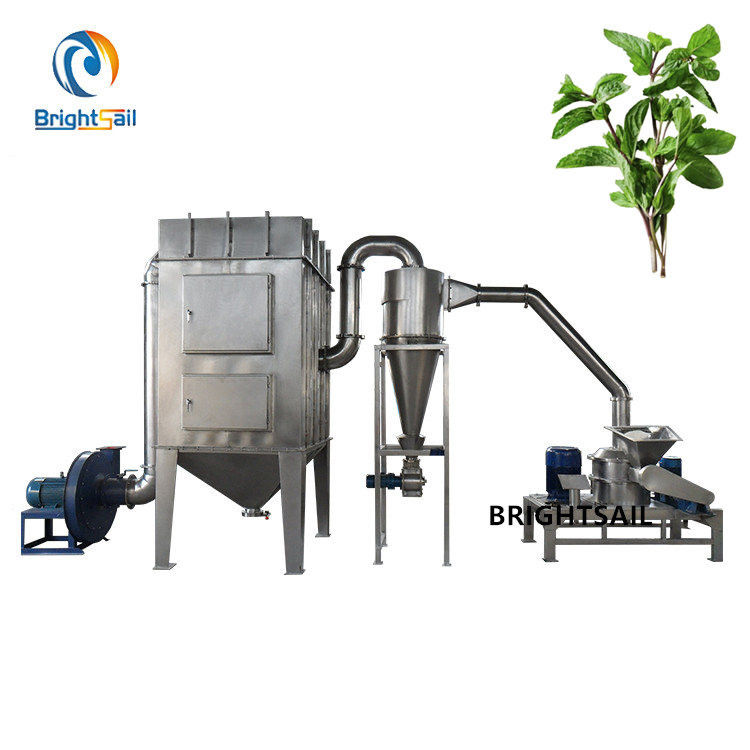

BSP glass herb grinder is composed of crusher, cyclone separator, dust collector, blower, electric control box, etc. it has the functions of winnowing, no screen, no net, uniform particle size and continuous processing. In line with the international advanced level, it is suitable for grinding materials in pharmaceutical, chemical and food industries.
Working method:
The raw materials are transported to the crushing chamber by the screw feeder through the hopper, cut and sheared by the high-speed cutting machine, and then the raw materials are moved to the cyclone separator and the sack dust collector by the negative pressure suction method, and the discharged materials meet the product requirements. This is why the BSP herbs grinder commercial can make ultrafine powder and can be used as a fine powder grinder.
Main components:
1. Pulse dust collector: collect the dust in the dust collector. There are several dust bags in the box, and the dust bag bracket is also made of stainless steel, which is easy to disassemble. Cleaning with pulse spray is very convenient for collecting dust.
2. Crusher part: the left motor is the crushing motor, the right motor is Electromechanical machinery. Small screw feeders are used to ensure a uniform and controlled feed rate.
3. The material enters the grinding chamber through the screw conveyor, and cuts and grinds in the grinding chamber through the fast rotating blade. The powder enters the grading chamber through the guide ring.
4. Cyclone separator: cyclone separator can separate dust and powder (particles). The rotary valve is made of stainless steel with uniform powder velocity. Easy to clean and disassemble.
Main features:
1) The structure is simple and easy to install and maintain.
2) There are water cooling sleeves around the grinding chamber, and the bearings can cool the machine.
3) Motors, electrical appliances, bearings and operating parts are all of the world's advanced brands.
4) There is no dust in the production process, so the dust can be collected in the dust box.
5) The particle size can be changed without changing the screening speed.
Drawing:
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Our Company:
The company focuses on the research and development of powder equipment, such as: baking machine, 50kg cocoa baking machine, chemical powder mixer, washing powder mixer, etc. Products are widely used in food, medicine, chemical industry and other industries, and has won a good reputation.
At present, our products have been sold to more than 40 countries in the world. Brightsell is committed to developing new advanced technologies and methods on machines, and our goal is to be a reliable provider of creative and value-added process solutions.
