Product Details:
|
| Product Name: | Herb Powder Grinding Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Material: | SS304/316 | Capacity: | 20-1800kg/h |
| Input Size: | <15 Mm | Fineness: | 60-2500 Mesh |
| Crusher Motor: | 11-75 Kw | Voltage: | Customized |
| High Light: | 1800kg/h heavy duty grinding machine,1800kg/h herb powder grinding machine,15mm Heavy Duty Grinding Machine |
||

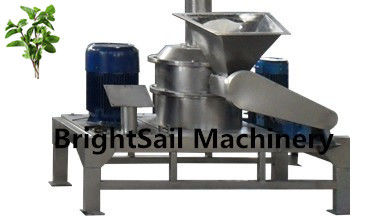

Good Selling Heavy Duty Grinding Machine For Dry Herbs For Superfine Powder
The BSP pulverizer machine for herbs is composed of a crusher, a cyclone separator, a dust collector, a blower, an electric control box, etc. It has the functions of dust selection, no sieve, no net, uniform particle size, and continuous processing. In line with the international advanced level, it is suitable for material grinding in pharmaceutical, chemical, food and other industries.
Working Method:
The raw materials are transported by the screw feeder to the crushing chamber through the hopper, and after being cut and sheared by the high-speed cutting machine, the raw materials are sent to the cyclone separator and the bag filter by the negative pressure suction method, and the discharge meets the product requirements. This is why the BSP superfine herb powder grinder can produce ultra-fine powder and can be used as a fine powder grinder.
Main Components:
1. Pulse dust collector: Collect the dust in the dust collector. There are multiple dust bags in the box, and the dust bag holder is also made of stainless steel, which is easy to disassemble. Pulse spray cleaning is very convenient for dust removal.
2. Crusher part: The left motor is the crushing motor, and the right motor is the electromechanical. A small screw feeder is used to ensure uniform and controlled feed speed.
3. The material enters the grinding chamber through the screw conveyor, and is cut and ground in the grinding chamber through the rapidly rotating blade. The powder enters the classification chamber through the guide ring.
4. Cyclone separator: The cyclone separator can separate dust and powder (particles). The rotary valve is made of stainless steel with uniform powder speed. Easy to clean and disassemble.
Main Features:
1) The structure is simple and easy to install and maintain.
2) There are water cooling sleeves around the grinding chamber, and the bearings can cool the machine.
3) Motors, electrical appliances, bearings, operating parts are all of the world's advanced brands.
4) There is no dust in the production process, and the dust can be collected in the dust removal box.
5) The particle size can be changed without changing the screening speed.
Drawing:
Technical Data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
