Product Details:
|
| Product Name: | Herb Powder Grinding Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Material: | SS 304/316 | Capacity: | 20-1800kg/h |
| Input Size: | <15 Mm | Fineness: | 60-2500 Mesh |
| Crusher Motor: | 11-75 Kw | Voltage: | Customized |
| High Light: | 2500 mesh herbal powder machine,60 mesh herbal powder machine,11kw herbal powder machine |
||
60-2500 mesh Grinder Machine Herbs Pulverizer Mill For Food With High Precision

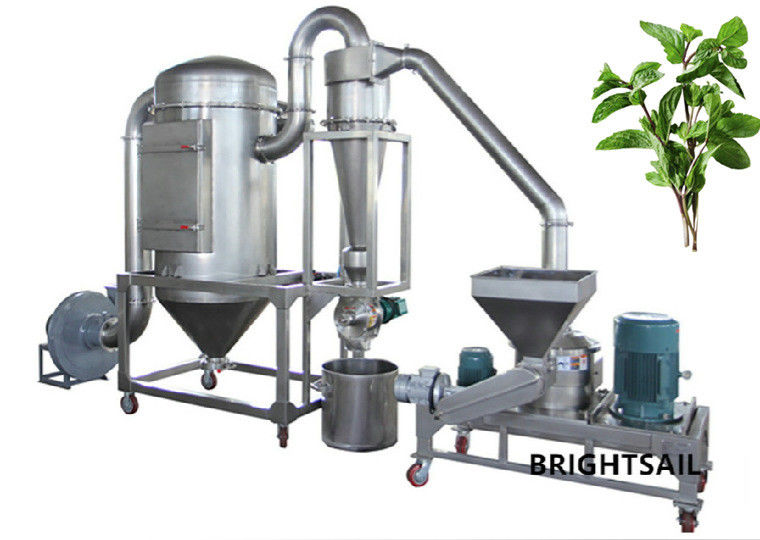

The BSP mill herb grinder is composed of a crusher, cyclone separator, dust collector, blower, electric control box, etc. It has the functions of dust selection, no screen, no net, uniform particle size and continuous processing. In line with the international advanced level, it is suitable for grinding materials in pharmaceutical, chemical and food industries.
Working Method:
The raw materials are transported to the crushing chamber by the screw feeder. The raw materials are sent to the cyclone separator and bag filter through the hopper, high-speed cutting machine after shearing and trimming, and the discharge meets the product requirements. This is why BSP superfine powder crusher can produce ultra-fine powder and can be used as fine powder pulverizer.
Main Components:
1. Pulse dust collector: the dust in the dust collector. There are many dust bags in the box, and the dust bag frame is also made of stainless steel, which is easy to disassemble. Pulse spray cleaning, dust removal is very convenient.
2. Crusher part: the left motor is the crushing motor, the right motor is Electromechanical. Small screw feeder is adopted to ensure the uniform and controllable feeding speed.
3. The material enters into the grinding chamber through the screw conveyor, and is cut and ground by the fast rotating blade in the grinding chamber. The powder enters the grading chamber through the guide ring.
4. Cyclone separator: cyclone separator can separate dust and powder (particles). The rotary valve is made of stainless steel with uniform powder speed. Easy to clean and disassemble.
Main Features:
1) The structure is simple and easy to install and maintain.
2) There are water cooling sleeves around the grinding chamber, and the bearings can cool the machine.
3) Motors, electrical appliances, bearings, operating parts are all of the world's advanced brands.
4) There is no dust in the production process, and the dust can be collected in the dust removal box.
5) The particle size can be changed without changing the screening speed.
Drawing:
Technical Data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
