Product Details:
|
| Product Name: | Herb Grinding Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Material: | SS 304/316 | Capacity: | 20-1800kg/h |
| Input Size: | <15 Mm | Fineness: | 60-2500 Mesh |
| Crusher Motor: | 11-75kw | Voltage: | Customized |
| High Light: | 75kw Electric Grain Grinder,15mm Electric Grain Grinder,75kw grain grinding machine |
||
Multifunction Spice Herb Nut Grain Grinder Blender Mill Can Be Customized

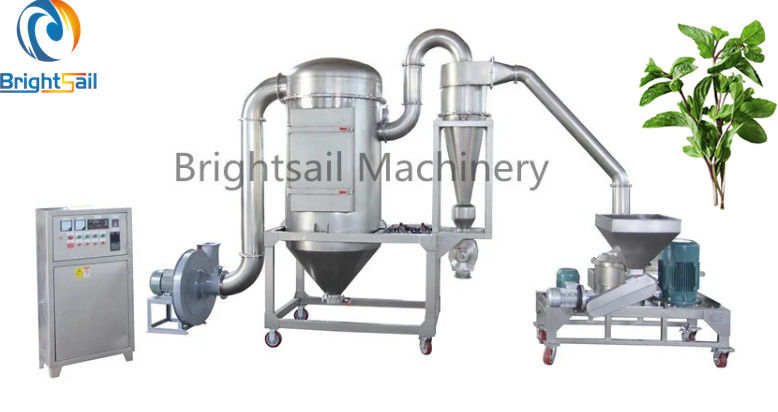

BSP herb mill grinder is composed of crusher, cyclone separator, dust collector, Fan, electric control box, etc. . It has the functions of Winnowing, net-free, uniform particle size and continuous processing. In line with the international advanced level, suitable for pharmaceutical, chemical, food and other industries of material grinding.
Working Method:
The raw materials are transported to the crushing chamber by the Screw Feeder through the hopper, cut and cut by the high-speed cutting machine, then the raw materials are sent to the cyclone separator and the bag filter by the method of negative pressure suction to discharge the materials to meet the product requirements. This is why a BSP grinders herb can make ultrafine powder and be used as a fine powder grinder.
Main Components:
1.Pulse Dust Collector: collect the dust in the dust collector. The box is provided with a plurality of dust-proof bags, and the dust-proof bag bracket is also made of stainless steel for easy disassembly. Pulse spray cleaning is very convenient for dust removal.
2.Crusher part: Left Motor for the crusher motor, right motor for electromechanical. Small spiral feeder is used to ensure uniform and controlled feed speed.
3.The material enters the grinding chamber through the screw conveyor, and is cut and ground in the grinding chamber by the rapidly rotating blade. The powder passes through the guide ring into the classification chamber.
4.Cyclone separators: Cyclone separators can separate dust and powder (particles) . The Rotary Valve is made of stainless steel with uniform powder velocity. Easy to clean and disassemble.
Main Features:
(1)simple structure, easy to install and maintain.
(2) there is a water cooled sleeve around the grinding chamber, where the bearings cool the machine.
(3) motors, electrical appliances, bearings and operating parts are world-class brands.
(4) there is no dust in the production process, so the dust can be collected in the dust collection box.
(5) you can change the granularity without changing the sieving speed.
Drawing:
Technical Data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Our Company:
Our company focuses on the research and development of powder equipment, such as: Baking machine, 50kg cocoa baking machine, chemical powder mixer, washing powder mixer, etc. . Products are widely used in food, pharmaceutical, chemical and other industries, and has won a good reputation. At present, our products have been sold to more than 40 countries in the world. BRIGHTSELL is committed to developing new advanced technologies and methods on machines. Our goal is to be a reliable provider of creative and value-added process solutions.
Our Services:
1. Pre-sale service:
24-hour consultation and consulting support;
Machine sample testing service;
Factory visit
2. After-sales service:
Guide the installation and use of the machine;
One-year warranty;
Video support;
Engineers can go to the user's factory to assist in installation and training.
