Product Details:
|
| Product Name: | Grain Pulverizer Powder Making Machine Ultrafine Pulverizer | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Material: | SS 304/316 | Capacity: | 20-1800kg/h |
| Input Size: | <15 Mm | Fineness: | 60-2500 Mesh |
| Crusher Motor: | 11-75 Kw | Voltage: | Customized |
| High Light: | 2500 mesh herb grinder,60 mesh herb grinder,1800kg/h herb grinder |
||
60-2500 mesh Customized High Quality Herb Grinder Used In Many Fields

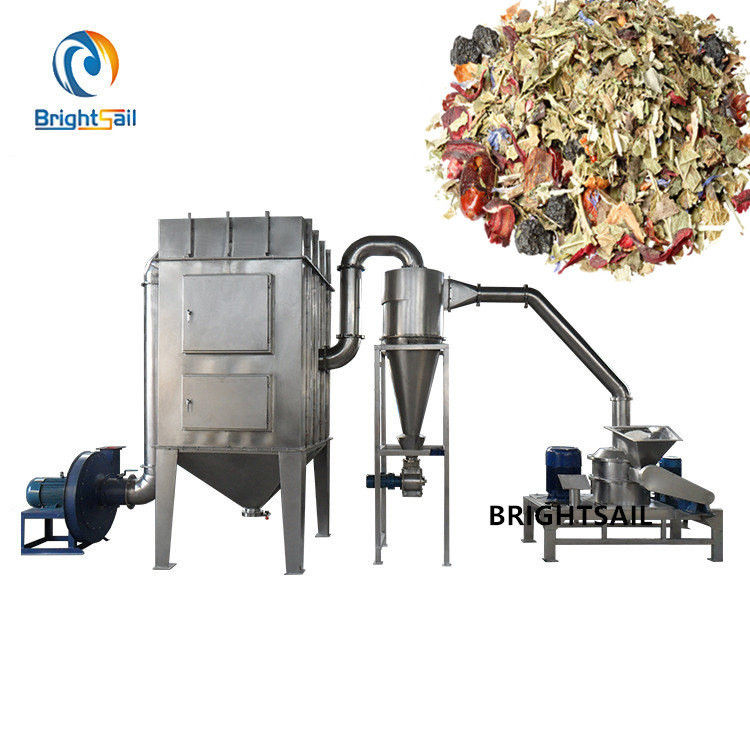

BSP custom grinder herb is composed of crusher, cyclone separator, dust collector, blower, electric control box, etc. it has the functions of winnowing, no screen, no net, uniform particle size and continuous processing. In line with the international advanced level, it is suitable for grinding materials in pharmaceutical, chemical and food industries.
Main components:
1. Pulse dust collector: Collect dust in the dust collector. There are multiple dust-proof bags in the box, and the dust-proof bag bracket is also made of stainless steel, which is easy to disassemble. Pulse spray cleaning, dust collection is extremely convenient.
2.Crusher part: The motor on the left is a crushing motor, and the motor on the right is an electromechanical machine. Using small screw feeder to ensure uniform and controllable feeding speed.
3.The material enters the grinding cavity through the screw conveyor, and is cut and ground by the rapidly rotating blade in the grinding cavity. The powder enters the classification chamber through the guide ring.
4.Cyclone separation: Cyclone separation can separate dust and powder (particles). The rotary valve is made of stainless steel with uniform powder speed. Easy to clean and disassemble.
Main features:
(1) It has the advantages of simple structure, easy installation and maintenance;
(2) there is a water cooling sleeve around the grinding room, and the bearing can cool the machine;
(3) the motor, electrical appliances, bearings and operating parts are all world advanced brands;
(4) there is no dust in the production process, and the dust can be collected in the dust box;
(5) the particle size can be changed without changing the screening speed.
Drawing:
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Our Company:
The company focuses on the research and development of powder equipment, such as: baking machine, 50kg cocoa baking machine, chemical powder mixer, washing powder mixer, etc. Products are widely used in food, medicine, chemical industry and other industries, and has won a good reputation.
At present, our products have been sold to more than 40 countries in the world. Brightsell is committed to developing new advanced technologies and methods on machines, and our goal is to be a reliable provider of creative and value-added process solutions.
Our Services:
1. Pre-sale service:
24-hour consultation and consulting support;
Machine sample testing service;
Factory visit
2. After-sales service:
Guide the installation and use of the machine;
One-year warranty;
Video support;
Engineers can go to the user's factory to assist in installation and training.
