Product Details:
|
| Product Name: | Herb Grinder | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Material: | SS 304/316 | Capacity: | 20-1800kg/h |
| Input Size: | <15 Mm | Fineness: | 60-2500 Mesh |
| Crusher Motor: | 11-75kw | Voltage: | Customized |
| High Light: | 20kg/h herbal powder machine,20kg/h herb powder grinder machine,iso herbal powder machine |
||
20-1800kg/h Custom Logo Herb Grinder High-Production
BSP herb pulverizer is composed of crusher, cyclone separator, dust collector, fan, electric control box, etc. It has the capabilities of winnowing, no screening, uniform particle size, and continuous processing. It meets the international advanced level and is suitable for medicine and chemical industry, materials crushing in industries, food, etc.
Working method:
The raw materials are conveyed to the grinding chamber through the hopper through the screw feeder, cut by the high-speed cutting machine, and then sucked into the cyclone separator and the bag dust collector through the negative pressure. Therefore, the BSP herb leaf cutting machine can produce superfine powder and can be used as a fine powder grinder.
Main components:
1.Pulse dust box: Collect dust in the dust box. There are multiple dust-proof bags in the box, and the bag holder is also made of stainless steel for easy disassembly. Using pulse jet cleaning, dust removal is very convenient.

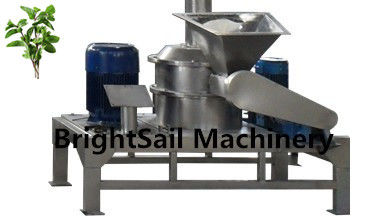

2.Crusher part: The left motor is a crushing motor, and the right motor is a grading motor. Using a small screw feeder to ensure uniform and controllable feeding speed.
3.The material enters the grinding chamber through the screw conveyor, where it is cut and ground by the rapidly rotating blade. The powder enters the classification chamber through the guide ring.
4 .Cyclone part: The cyclone separator can separate dust and powder (particles). The rotary valve makes the powder output speed even, and is made of stainless steel. Easy to clean and disassemble.
Main features:
1) Simple structure, convenient installation and maintenance.
2) There is a water cooling jacket around the grinding chamber, and the bearing can cool the machine.
3) Motors, electrical appliances, bearings, and operating parts adopt world advanced brands.
4) There is no dust during the production process, and the dust can be collected in the dust removal box.
5) No need to sieving, the particle size can be changed by changing the speed, and the powder particles are uniform.
Drawing:
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Our Company:
1. Years Professional in Pharmaceutical & Food & Chemical Machinery!
2.A Full Range of Technical Support, Not Only for Our Machines, But Also for Your Production Process!
3. We self manufacture sugar coating machine, chocolate coating plant, mixing machine, grinding machine, drying machine...etc.
Please connact us if you have any interests in our products.
