Product Details:
|
| Product Name: | Smart Herb Grinder | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Material: | SS304/316 | Capacity: | 20-1800kg/h |
| Input Size: | <15 Mm | Fineness: | 60-2500 Mesh |
| Crusher Motor: | 11-75kw | Voltage: | Customized |
| High Light: | 20kg/h Herbal Powder Machine,SS304 Herbal Powder Machine,11kw Herbal Powder Machine |
||
20-1800kg/h Herb Grinding Machine High-Production

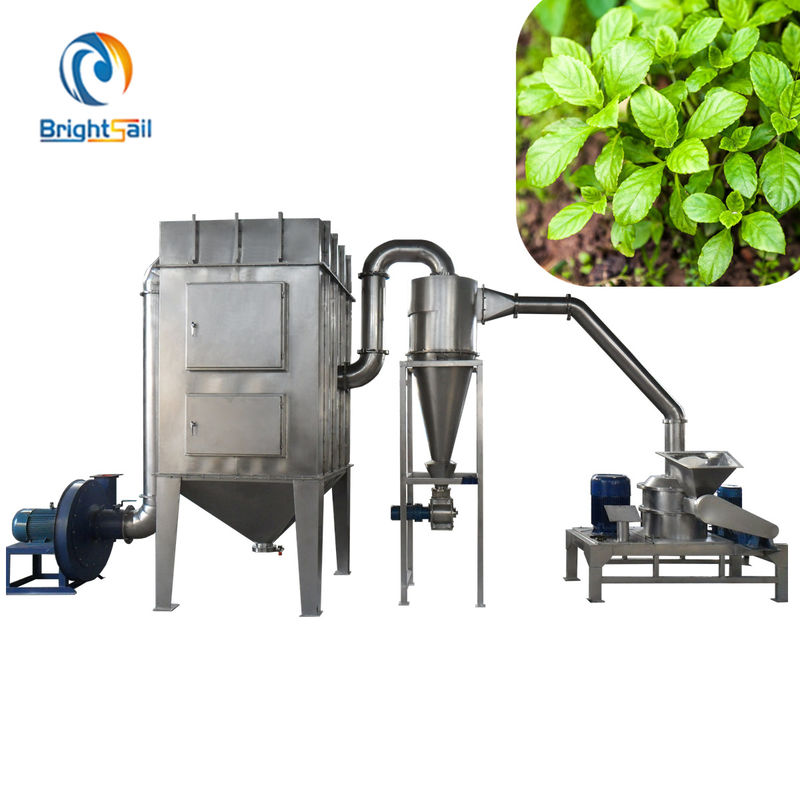

The BSP gold herb grinder is composed of crusher, cyclone separator, dust collector, fan, electrical control box and other components. With selection and screening capabilities, uniform particle size, continuous processing. It is suitable for industries such as pharmaceutical and chemical industry, industrial raw material crushing, and food industry.
Working method:
The raw materials are transported to the grinding chamber by screw feeder and hopper, cut by high-speed cutting machine, and then inhaled by negative pressure cyclone separator and bag filter. Therefore, BSP industrial herb grinder can produce ultra-fine powder, which can be used as a fine powder grinder.
Main components:
1. Pulse dust box: collect dust in the dust box. There are several dust bags in the packing box. The bag rack is made of stainless steel, which is easy to disassemble. It is very convenient to use pulse jet cleaning.
2. Crusher part: the left motor is the crushing motor, and the right motor is the grading motor. Small screw feeder is used to ensure the feeding speed is uniform and controllable.
3. The material enters the grinding chamber through the screw conveyor, where it is cut and ground by the rapidly rotating blade. The powder enters the grading chamber through the guide ring.
4. Cyclone separator part: cyclone separator can separate dust and powder (particles). Rotary valve using uniform velocity powder, stainless steel material. Easy to clean and disassemble.
Main features:
(1) simple structure, easy installation and maintenance.
(2) there is a water-cooled sleeve around the mill, and the bearings cool the machine.
(3) there is no dust in the production process, and the dust can be collected in the dust box.
(4) without Sieving, the particle size can be changed by changing the speed, and the powder particles are even.
Drawing:
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
