Product Details:
|
| Product Name: | Smart Herb Grinder | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Material: | SS 304/316 | Capacity: | 20-1800kg/h |
| Input Size: | <15mm | Fineness: | 60-2500 Mesh |
| Crusher Motor: | 11-75kw | Voltage: | Customized |
| High Light: | 1800kg/h herbs pulverizer mill,15mm herbs pulverizer mill,75kw herbs pulverizer mill |
||

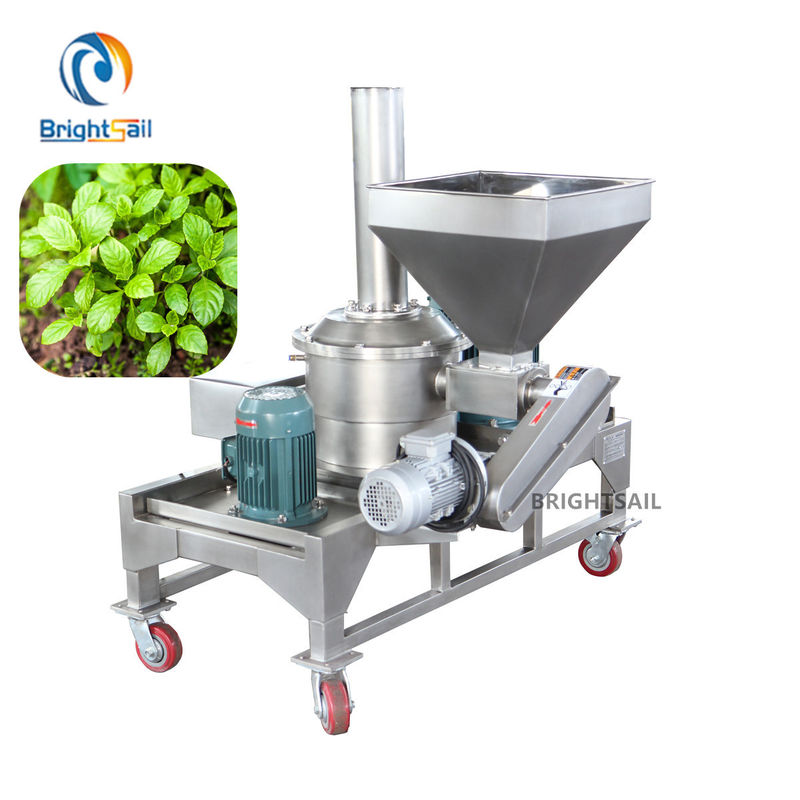

20-1800kg/h Herb Grinding Machine High-Production
BSP electric herbal grinder is composed of crusher, cyclone separator, dust collector, fan, electric control box and other components. It has the ability of selection and screening, uniform particle size and continuous processing. It is suitable for pharmaceutical, chemical, industrial raw material crushing, food and other industries.
Working method:
Raw materials are transported to the grinding chamber by spiral feeder and hopper, cut by high speed cutting machine, and inhaled by negative pressure cyclone separator and bag-type dust collector. Therefore, BSP grinder herbal machine can produce super fine powder, can be used as a fine powder mill.
Main components:
1. Pulse ash box: collect dust in the ash box. There are several dust bags in the packing box. The bag rack is made of stainless steel, easy to disassemble. It is very convenient to use pulse jet cleaning.
2.Crusher part: the left motor is the crushing motor, the right motor is the grading motor. Small screw feeder is adopted to ensure uniform and controllable feeding speed.
3.The material enters the grinding chamber through a screw conveyor, where it is cut and ground by rapidly rotating blades. The powder enters the grading chamber through the guide ring.
4.Cyclone separation part: cyclone separation can separate dust and powder (particles). It is made of stainless steel powder with uniform speed. Easy to clean and disassemble.
Main features:
(1) simple structure, easy installation and maintenance.
(2) there is a water-cooled sleeve around the mill, and the bearings cool the machine.
(3) there is no dust in the production process, and the dust can be collected in the dust box.
(4) without Sieving, the particle size can be changed by changing the speed, and the powder particles are even.
Drawing:
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
How Can I Buy This Machine?
First, discuss the details and prices of all the machines with our sales staff. Second, confirm the price and payment terms, trade guarantee/TT/custody/Western Union remittance, etc. . Please send us the order, confirm the Proforma Invoice and arrange the deposit. As soon as we receive the deposit, we will arrange the production. Finally, after the machine is ready, please arrange the final payment to us, we receive the final payment to arrange booking shipping to you.
Please contact us if you have any interests in our products.
