Product Details:
|
| Product Name: | Smart Herb Grinder | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Material: | SS 304/316 | Capacity: | 20-1800kg/h |
| Input Size: | <15 Mm | Fineness: | 60-2500 Mesh |
| Crusher Motor: | 11-75kw | Voltage: | Customized |
| High Light: | 11kw tobacco weed grinder,2500 mesh tobacco weed grinder,60 mesh tobacco weed grinder |
||

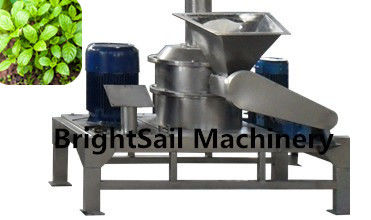

Good Selling Herb Grinders Herbal Tobacco Weed Grinder 60-2500 Mesh
BSP herb weed grinders is composed of crusher, cyclone separator, dust collector, fan, electric control box and other components. It has the ability of selection and screening, uniform particle size and continuous processing. It is suitable for pharmaceutical, chemical, industrial raw material crushing, food and other industries.
Working Method:
Raw materials are transported to the mill room by screw feeder and hopper, then cut by high-speed cutting machine, and then inhaled by negative pressure suction cyclone separator and bag filter. Therefore, BSP bamboo herb grinder can produce ultra-fine powder, which can be used as grinding machine.
Main components:
1. Pulse ash box: collect the dust in the ash box. There are several dust bags in the packing box. The bag rack is made of stainless steel, easy to disassemble. It is very convenient to use pulse jet cleaning.
2. Crusher part: the left motor is the crushing motor, and the right motor is the grading motor. Small screw feeder is adopted to ensure the uniform and controllable feeding speed.
3. The material enters the grinding chamber through a screw conveyor, where it is cut and ground by a rapidly rotating blade.
The powder enters the grading chamber through the guide ring.
4.Cyclone separation part: cyclone separation can separate dust and powder (particles). It is made of stainless steel powder with uniform speed. Easy to clean and disassemble.
Main features:
(1) The structure is simple and easy to install and maintain.
(2) There are water cooling jacket and bearing cooling machine around the rolling mill.
(3) There is no dust in the production process, and the dust can be collected in the dust removal box.
(4) The particle size can be changed by changing the speed without sieving, and the powder particles are uniform.
Drawing:
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
How Can I Buy This Machine?
First, discuss the details and price of all the machines with our sales staff. Second, confirm the price and payment terms, trade guarantee/telegraphic transfer/custody/western union remittance, etc. . Please send us the order, confirm the Proforma Invoice and arrange the deposit. As soon as we receive the deposit, we will arrange the production. Finally, when the machine is ready, please arrange the last payment to us, we receive the last payment, so that we can arrange the order to ship to you.
Please contact us if you have any interests in our products.
