Product Details:
|
| Product Name: | Large Herb Grinder | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Material: | SS 304/316 | Capacity: | 20-1800kg/h |
| Input Size: | <15 Mm | Fineness: | 60-2500 Mesh |
| Crusher Motor: | 11-75kw | Voltage: | Customized |
| High Light: | 2500 mesh Large Herb Grinder,60 mesh Large Herb Grinder,SS304 Large Herb Grinder |
||
SS 304/316 Large Herb Grinder 60-2500 mesh

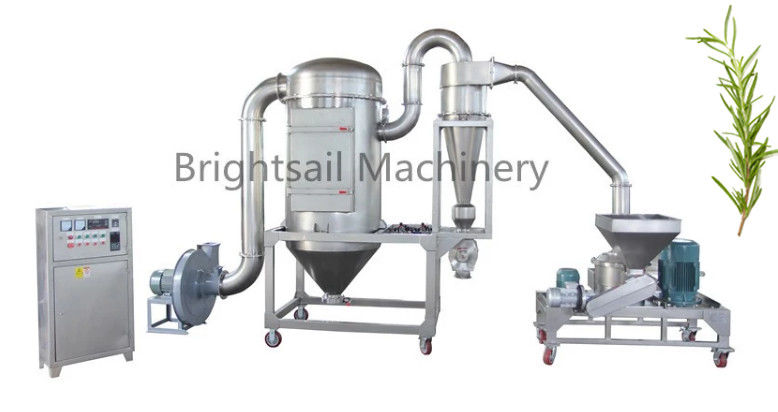

The BSP herb cutter is composed of three parts: main engine, auxiliary engine and Electric Control Box. BSP grinding machine has the characteristics of air selection, no screen, no net, uniform particle size of processed materials, etc. . Continuous production process, can undertake the grinding of chemical products. Food, medicine, cosmetics, plastics, dyes, resins, grains, etc. .
Working Method:
The raw materials are fed into the grinding cavity by the screw feeder, and after being cut by the high-speed cutting machine, they are sent to the cyclone separator and the bag filter by means of negative pressure adsorption, and the discharge meets the product requirements. This herb pulverize machine is very suitable for making superfine medicine powder.
Main components:
(1) The left motor is a crushing motor and the right motor is a graded motor. Small screw feeder is adopted to ensure the uniform and controllable feeding speed.
(2) The material enters the grinding chamber through the screw conveyor and is sheared and grinded by the fast rotating blade. The powder enters the grading chamber through the guide ring.
(3) The rotary valve makes the powder discharging speed uniform. The rotary valve is also made of stainless steel, which is easy to clean and disassemble.
(4) The dust is collected in the dust box.
Main features:
(1) simple structure, easy to install and maintain.
(2) there are water cooling sleeve and bearing cooler around the rolling mill.
(3) there is no dust in the production process, and the dust can be collected in the dust collection box.
(4) without Sieving, the particle size can be changed by changing the speed, and the powder particles are even.
Drawing:
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
How Can I Buy This Machine?
First, discuss the details and prices of all the machines with our sales staff. Second, confirm the price and payment terms, trade guarantee/wire transfer/custodial/Western Union, etc. Please send the order to us, confirm the proforma invoice and arrange the deposit. We will arrange production as soon as we receive the deposit. Finally, when the machine is ready, please arrange the last payment to us. We receive the last payment so that we can arrange the order to be shipped to you.
Please contact us if you have any interests in our products.
