Product Details:
|
| Product Name: | Large Herb Grinder | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Material: | SS 304/316 | Capacity: | 20-1800kg/h |
| Input Size: | <15mm | Fineness: | 60-2500 Mesh |
| Crusher Motor: | 11-75kw | Voltage: | Customized |
| High Light: | 1800kg/h herb powder grinder,20kg/h herb powder grinder,15mm herb powder grinder |
||

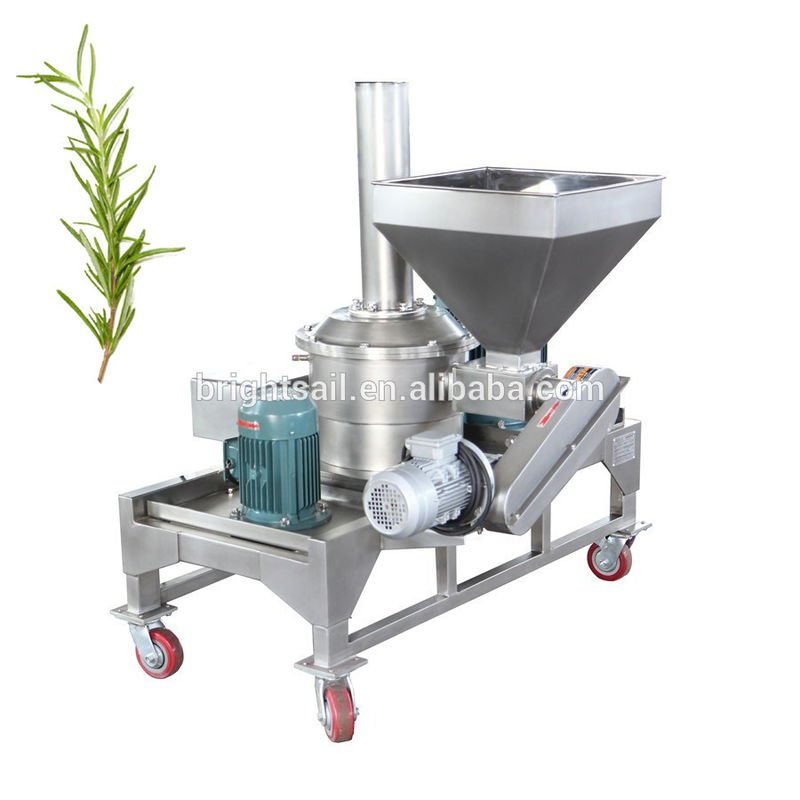

Multifunctional Private Label Herb Grinder 20-1800kg/h
Working Method:
The raw materials are fed into the grinding cavity by the screw feeder, and after being cut by the high-speed cutting machine, they are sent to the cyclone separator and the bag filter through negative pressure adsorption. The discharge meets the product requirements. This wood herb grinder is suitable for making superfine powder.
Main components:
(1) The left motor is a crushing motor, and the right motor is a grading motor. Small screw feeder is used to ensure uniform and controllable feeding speed.
(2) The material enters the grinding chamber through the screw conveyor, and is sheared and ground by the fast rotating blades. The powder enters the classification chamber through the guide ring.
(3) The rotating valve makes the powder output speed even. The rotary valve is made of stainless steel, which is easy to clean and easy to disassemble.
(4) Dust is collected in the dust collector box.
Features:
(1) simple structure, easy to install and maintain.
(2) there are water cooling sleeve and bearing cooler around the rolling mill.
(3) there is no dust in the production process, and the dust can be collected in the dust collecting box.
(4) without Sieving, the particle size can be changed by changing the speed, and the powder particles are uniform.
Drawing:
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
