Product Details:
|
| Product Name: | Automatic Grinding Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Crusher Motor: | 7.5-45kw | Material: | SS 304/316 |
| Capacity: | 20-2000kg/h | Color: | Original Color |
| Input Size: | <15mm | Fineness: | 60-2500 Mesh |
| Voltage: | Customized | ||
| High Light: | automatic sugar grinder pulverizer,7.5kw sugar grinder pulverizer,pharmaceutical sugar grinder pulverizer |
||
sugar pulverizer grinding machine mill machine or classifier mill
herbal powder machine sugar pulverizer grinding machine mill machine or classifier mill

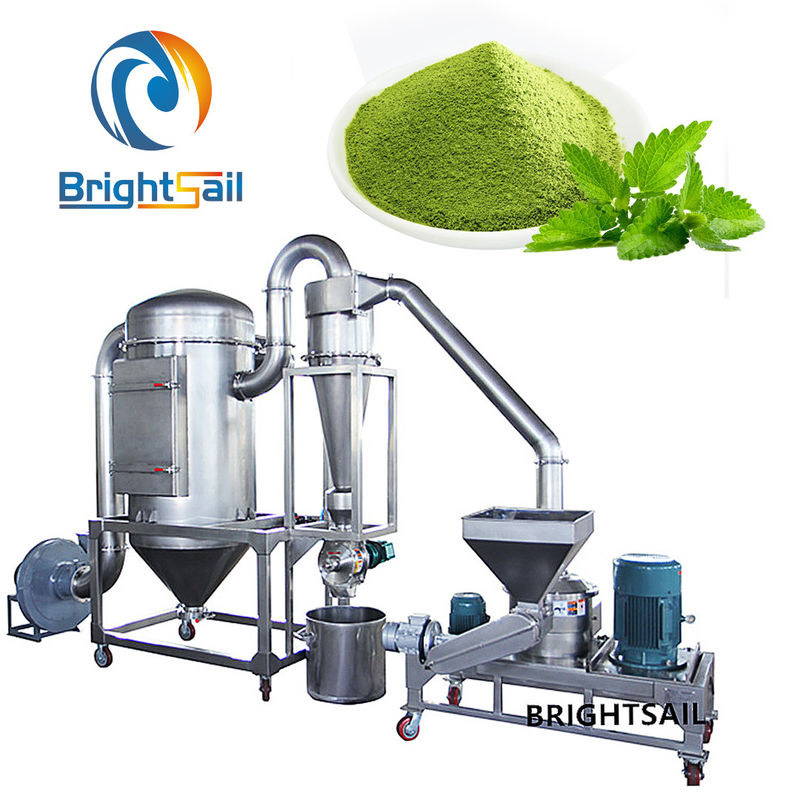

The BSP Golden Herbal Grinder is a fully automatic and efficient grinder with split type and joint type to choose from. It is widely used in food, chemical, paint, medicine and other fields. In the food field, it can grind cooked soybeans, sugar, salt, cinnamon, pepper, garlic, ginger, rice, tea... etc. It is connected with a cold air machine and can grind materials with high oil content.
Working method:
The raw materials are transported to the grinding chamber through the feeder. Under the action of the high-pressure fan, the crushed materials are transferred from the crushing host to the discharging system, and the fine dust is separated into the dust removal system to ensure continuous discharge production without dust.
Main components:
The raw materials enter the grinding chamber through the feed hopper and are impacted
Throw it to the fixed liner with a high-speed rotating knife, then bounce and
shear.
There is a high-speed fan blade next to the grinding chamber, which produces
Positive airflow. Under the action of compressed air, the powder passes
The screen is faster and absorbed by the whirlwind.
Part of the ultra-fine powder enters the pulse dust box, so there is no
There is no waste and no dust in the production process.
Main features:
The crusher part is equipped with a fan, the powder will be absorbed by itself,
1) The capacity is much larger than the traditional type, and the capacity is 2-3 times that of the traditional type
Universal grinder.
2) The temperature in the crusher cavity remains normal, and the nature of the material will not be changed.
Drawing:
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
