Product Details:
|
| Speed: | Frequency Control | Product Name:: | Lectrical Pressure Washer |
|---|---|---|---|
| Material: | SUS304 | Guarantee Period: | 1Year |
| Power: | 4.5kw | Machinery Function: | CleaningZ&Washing |
| High Light: | Frequency Control Vegetable Bubble Washer,1750kg Vegetable Bubble Washer,1750kg fruit bubble washer |
||

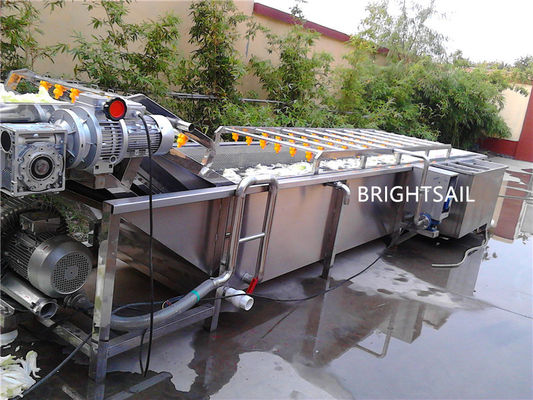

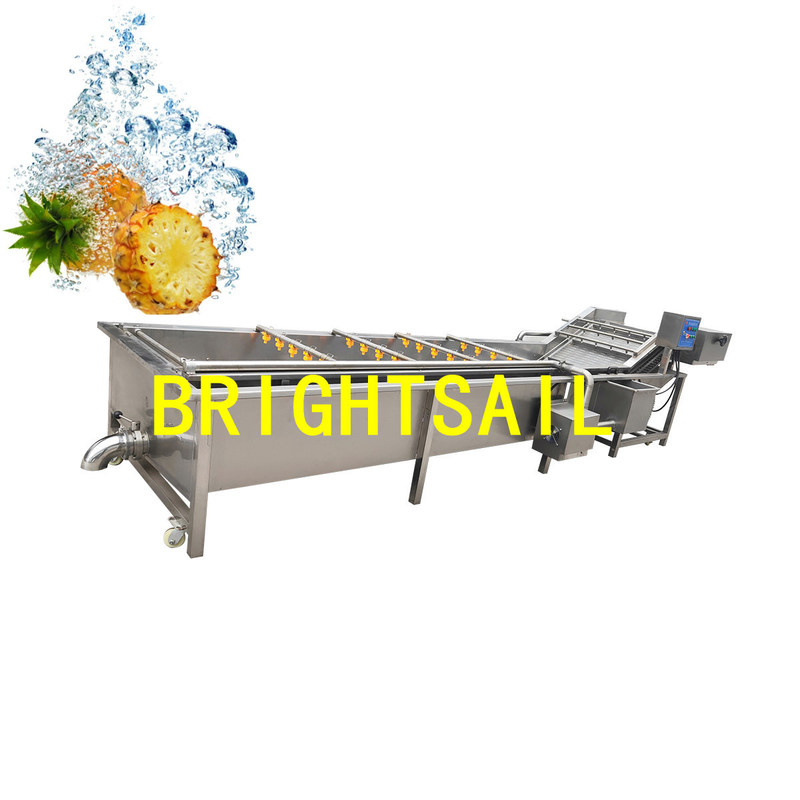

Maximum Yield Of 1750kg Fruit Bubble Washer Frequency Control
Prodyct Description:
BSQP bubble washer is mainly used for the cleaning of Chinese toon, vegetables, fruits, fungi, all kinds of packaging, high degree of cleaning, can maintain the original color and lustre.
| Technical Data: | |||
| Models | BSQP-3500 | BSQP-4000 | BSQP-5000 |
| Size(mm) | 3500*1400*1350 | 4000*1600*1350 | 5000*1600*1350 |
| Power(kw) | 4.07 | 4.87 | 5.25 |
| Mesh Belt's Width(mm) | 600 | 800 | 800 |
| Weight(kg) | 360 | 500 | 700 |
| Capacity(kg/h) | 750 | 1250 | 1750 |
| Speed | Frequency Control | ||
Working Principle:
The principle of air bubble cleaning machine is mainly used in the case before the equipment enclosure note right amount water, high-pressure air bubbles in housing opportunities to produce a large number of dense bubbles, make the product with roll as it passed the box body scrub, a combination of items in a bubble machine and water under the action of tumbling state, and with the net belt to constantly move forward, when out of the water, high-end with the spray head, high pressure washing. Then enter the second half to distinguish the water area, the packaging for secondary cleaning cooling, with the net belt forward to advance in the surface, the high-end with a spray head for high pressure rinse.
Product Description:
1.This type washing machine is made of foof grade 304 stainless steel.
2.It is multifunctional washing and cleaning, non-damaging materials.
3.It has air bubble generator to assure the best washing effect.
4.Ozone (Select function) and air bubble generator installed in this machine make water full of bubble and ozone to get deep cleaning effect during washing process.
5.It is with automatic purification function, so the water can be purified and then reused.
6.Conveying speed is adjustable depedning on washing material and your require.
7.Washing capacity can custom made from 100kg to 5000kg per hour.
Features Of BSQP Apple Bubble Washer:

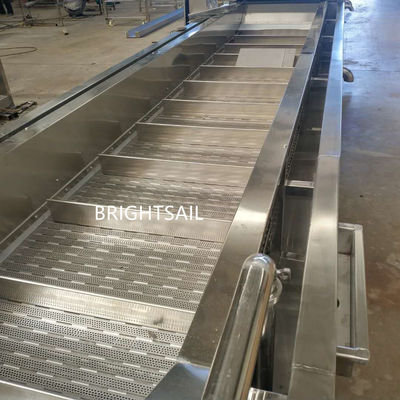

This machine adopts SUS304 stainless steel chain plate mesh belt transmission, mesh belt high strength, small retractability, not easy to deformation, easy to maintain and other characteristics, the whole machine running balance, low noise, greatly improve the work efficiency. When discharging, the material is transported out of the equipment directly with the lifting of the net belt. The conveying reducer is controlled by frequency conversion. The speed of the net belt can be freely adjusted and the operation is stable.
