Food Sterilizer R22 Industrial Air Cooler 400 Cubic Meters Air Output

Food Sterilizer R22 Industrial Air Cooler 400 Cubic Meters Air Output
Food Sterilizer R22 Industrial Air Cooler 400 Cubic Meters Air Output
Food Sterilizer R22 Industrial Air Cooler 400 Cubic Meters Air Output Food Sterilizer R22 Industrial Air Cooler 400 Cubic Meters Air Output Food Sterilizer R22 Industrial Air Cooler 400 Cubic Meters Air Output Food Sterilizer R22 Industrial Air Cooler 400 Cubic Meters Air Output

Large Image :  Food Sterilizer R22 Industrial Air Cooler 400 Cubic Meters Air Output

Product Details:
Place of Origin: China
Brand Name: Brightsail
Certification: CE ISO
Model Number: BSAF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: wooden case or container
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 per month

Food Sterilizer R22 Industrial Air Cooler 400 Cubic Meters Air Output

Description
Product Name: Air Cooler Industrial Other Name: Industrial Air Cooler
Refrigerating Capacity(Kcal/hr): 28896-120400 Noise(dBA): 72-75
Refrigerant: R22 Power Supply: 1N-220V-50HZ Or 3N-380V-50HZ
Air Output: 400~2000m³/h Total Powder: 2.1~9.8KW
High Light:

R22 Industrial Air Cooler

,

food sterilizer air cooler

,

Industrial food sterilizer air cooler

400 To 2000 Cubic Meters Of Air Output Per Hour Customized Air Cooler Industrial



Why Choose Us:​
Within years, we have exported machine to over 70 countries.

For example, New Zealand, Germany, Poland, Thailand, Pakistan, Qatar, Nigeria and many other countries.

So you do not need to worry about the export procedures because we know all the procedures.



Equipment introduction:
1. Air supply refrigeration system of air cooler:
First start the blower to circulate the air. After the air is cooled by the air cooler refrigeration system, the flowing air is cooled down rapidly after passing through the evaporator, and then output by the fan, which directly affects the product or space. The outlet air temperature can be automatically adjusted according to requirements, which can be used for a long time, saving energy and no pollution. Therefore, the air cooler is a standard environmental protection and energy saving equipment.
2. The refrigerant circulation system of the air cooler:
The liquid refrigerant in the evaporator absorbs the heat from the air and begins to evaporate. There is a temperature difference between the refrigerant and the air. The liquid refrigerant is also completely vaporized into a gaseous state, which is then sucked into a compressor for compression (increasing pressure and temperature) . The gaseous refrigerant absorbs heat (air/water) through the condenser, condenses into a liquid, throttles through a thermal expansion valve (or capillary) , and the cryogenic and low pressure refrigerant enters the evaporator to complete the refrigerant cycle.

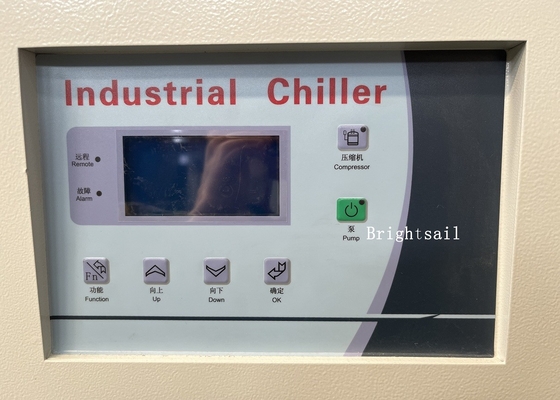

3. the electrical automatic control system of the air cooler:

Including power supply part and automatic control part. The power supply part supplies power to the compressor, cooling fan, blower, etc. through the contactor. The automatic control part includes constant temperature, pressure protection, time delay, relay, overload protection, etc., and realizes the functions of automatic start, stop and protection according to the air temperature.



Technical Data:

Model unit BS-6AF BS-9AF BS-12AF BS-14AF BS-22AF BS-28AF
Cooling Capacity Kw 5.6 8.4 11.2 14 22.4 28
Kcal/hr 4816 7226 9632 12040 19264 24080
Power supply 1N-220V-50HZ 3N-380V-50HZ
Margin blast pressure Pa 300 300 300 500 500 500
Noise dBA 68 68 68 72 72 72
Compressor Kw 1.5 2.25 3 3.75 3.0*2 3.75*2
Total power Kw 2.1 2.9 4.1 5.1 7.9 9.8
Refrigerating fluid R22
Evaporator type Steel tube sleeve aluminum fin type
Condenser(hot wind) High Airflow Fans m³/h 2000 3000 4000 5000 8000 10000
  type Steel tube sleeve aluminum fin type
Blower(blower) air output m³/h 400 600 800 1000 1600 2000
Outlet diameter mm 100 100 125 125 150 150
Motor Kw 0.37 0.37 0.75 0.75 1.1 1.5
type Centrifugal fan
filter Nylon filter net for return air (no need for air duct)
filter 5-20℃ (adjustable range, action deviation +3℃) Standard is side air outlet, if top air outlet and special temperature requirements need to be indicated)
Integral dimensions length mm 850 1000 1000 1200 1320 1400
width mm 500 600 600 600 750 780
height mm 800 880 880 960 1450 1550
weight kg 80 110 160 180 300 320



Features:

1. The blower adopts imported high quality blower. Through scientific selection and computer selection software, the FAN has high efficiency, low sound, reliable performance, and can guarantee the air volume and pressure head. The Fan bearing adopts Lithium Grease, which can be used regularly for a long time. No Lube required.

2. The condenser is air-cooled. The heat exchanger is made of copper tube and aluminum fin. The copper pipes are arranged horizontally on equal sides. The aluminum plate has a hyperbolic ripple. Double flanges are used for pipe holes. Copper Pipe through mechanical expansion and fin close contact, heat transfer effect, air resistance is small, easy to clean. Using high quality condensing fan, large air volume, low noise, remarkable effect. In addition, air-cooled condensers are easy to use and do not require additional cooling towers;

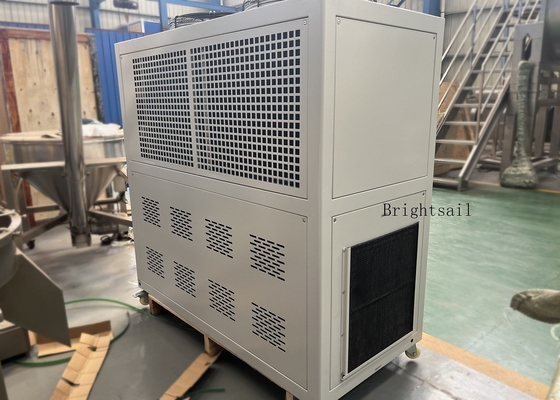

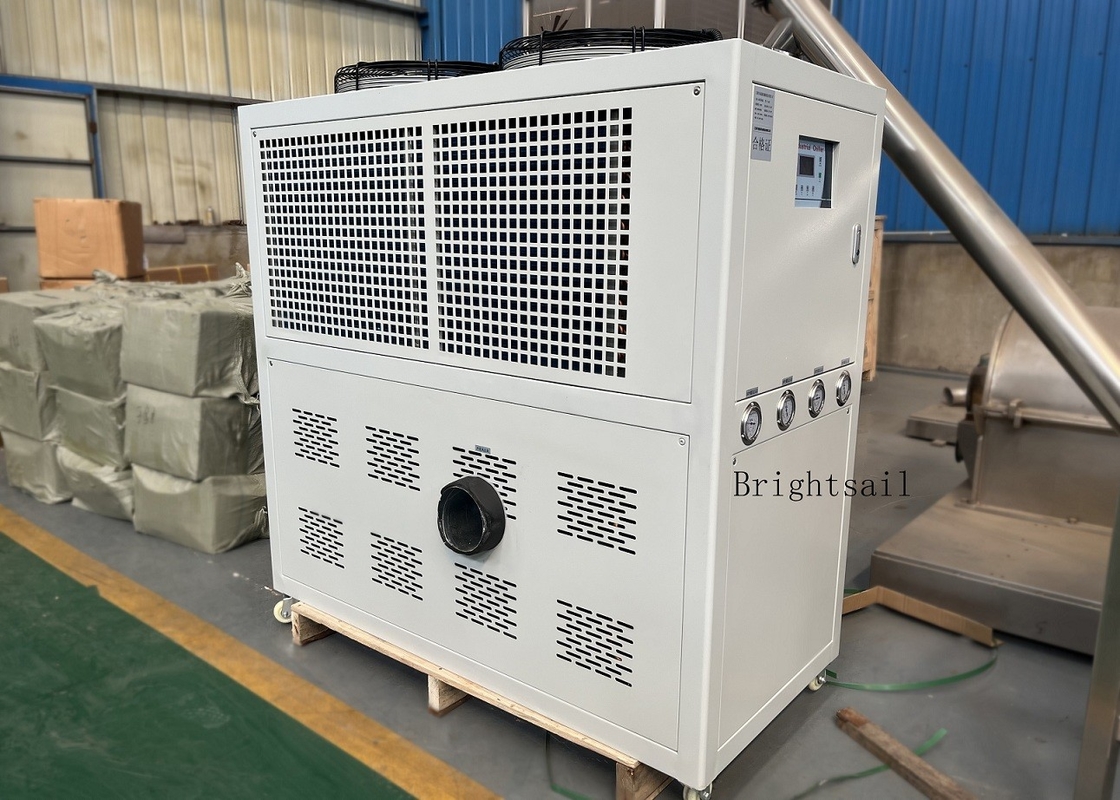

3. Air-cooled industrial air coolers are constructed with combined sheet metal structure for easy maintenance and internal cleaning. According to the direction of the Condenser Fan, scientifically perforate the sheet metal plate to dissipate heat.

4. Through scientific design, the optimization combination of various technical parameters is fully considered, and the indexes are advanced and reasonable. At the same time, the design can be modified according to user requirements, providing different performance indicators of the product.



Food Sterilizer R22 Industrial Air Cooler 400 Cubic Meters Air Output 0



Welcome to contact us is you have any interests in our products.

our email: info@brightsail-asia.com

our website: www.brsmill.com

our Whatsapp: +8615961653782
