Product Details:
|
| Speed: | Frequency Control | Product Name:: | Industrial Fruit And Vegetable Washer |
|---|---|---|---|
| Material: | Stainless Steel | Guarantee Period: | 1Year |
| Capacity: | 750-1750kg/hr | Machinery Function: | CleaningZ&Washing |
| Other Name: | Vegetable Washing Equipment | ||
| High Light: | Chili Air Bubble Washing Machine,air bubble vegetable washer,Fruit vegetable Air Bubble washing equipment |
||

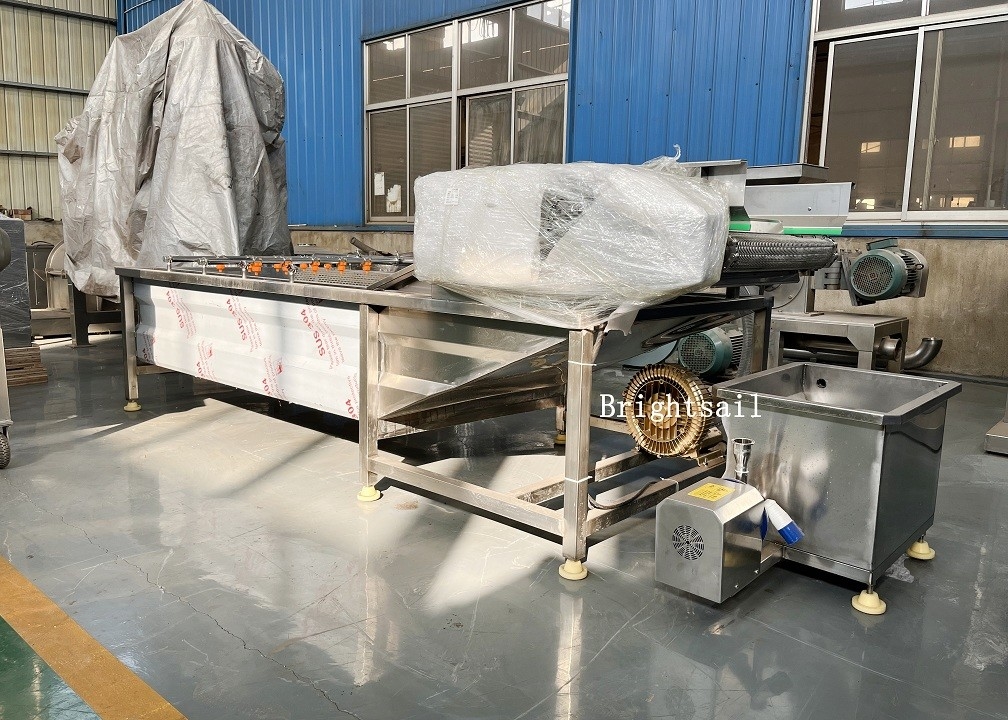

Food Industry 4.87kw Fruit Vegetable Chili Air Bubble Washing Machine
FAQ:
Q: How do you pack your machines?
A: If it's a small machine, it's packed in wooden cases.
If it is a large machine or many machines, we will take the container, we will split the machine into several parts, then wrap the machine with wrapping film, and then fix it in the container with wire rope to prevent them from shaking during transportation..
Our Services:
1. Pre-sales service:
Inquiry and consulting support with 24 hours;
Machine sample test service;
Factory visit
2. After-sales service:
Instructing how to install and use the machine;
one year warranty;
video support;
engineer is available to go to user's factory to help install and train.
Product Description:
Our BSQP vegetable and fruit bubble washing machine is mainly used for cleaning toona sinensis,vegetables,fruits,fungi,and many kinds of packaging.
Technical Data:
| Models | BSQP-3500 | BSQP-4000 | BSQP-5000 |
| Size(mm) | 3500*1400*1350 | 4000*1600*1350 | 5000*1600*1350 |
| Power(kw) | 4.07 | 4.87 | 5.25 |
| Mesh Belt's Width(mm) | 600 | 800 | 800 |
| Weight(kg) | 360 | 500 | 700 |
| Capacity(kg/h) | 750 | 1250 | 1750 |
| Speed | Frequency Control | ||
Working Principle:

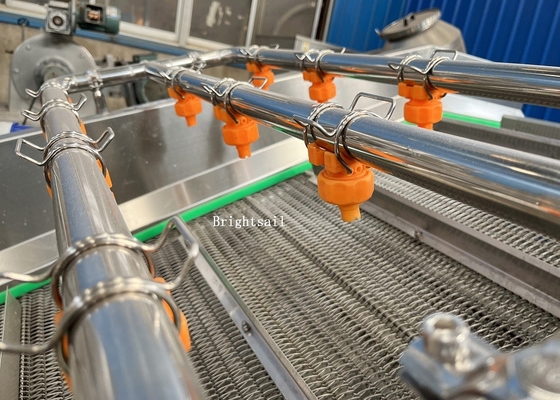

The principle of bubble cleaning machine is mainly to inject an appropriate amount of water in front of the equipment box. High pressure foam box will produce a lot of dense foam, so the product can be scrubbed through the box and its body. The utility model relates to a combined article, which is in the rolling state of the bubble machine and water, and keeps moving along with the net belt. When the water comes out, the high end is equipped with a nozzle for cleaning under high pressure. Then enter the lower water zone for secondary cleaning and cooling of packaging, push it on the surface with mesh belt, and high-end use spray head for high-pressure cleaning.
Advantages:
1. This machine is made of grade 304 stainless steel.
2. Multi-function cleaning, no damage to materials.
3. Equipped with bubble generator to ensure the best washing effect.
4. This machine is equipped with ozone (selective function) and bubble generator, so that the water filled with bubbles and ozone, in the washing process to achieve the effect of deep cleaning.
5. The utility model has the function of automatic purification and can be reused after water purification.
6. The conveying speed can be adjusted according to the washing material and your requirement.
7. Washing capacity can be customized from 100kg to 50kg.
Features:

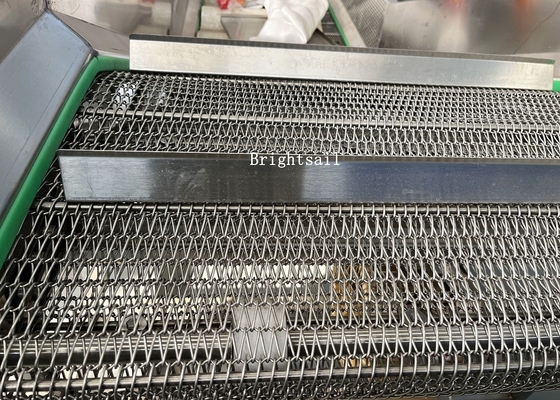

The machine adopts SUS304 stainless steel chain plate mesh belt drive, the mesh belt has the characteristics of high strength, small expansion and contraction, not easy to deform, easy to maintain, etc.
The whole machine runs smoothly and has low noise, which greatly improves the work efficiency. When discharging, the material is conveyed directly from the equipment with the lifting and lowering of the mesh belt.
The transmission reducer adopts frequency conversion control. The speed of the mesh belt can be adjusted freely, and the operation is stable.
