Product Details:
|
| Product Name: | Conveyor Belt Metal Detector | Other Name: | Food Industry Metal Detector |
|---|---|---|---|
| Application: | Industries Of Chemical,medical,foodstuff | Material: | Customized |
| Size(mm): | 1330×750×1100(L×W×H) | Weight: | 180kg |
| Function: | Detecting Metal From Raw Materials | ||
| High Light: | conveyor belt metal detector food processing,shockproof automatic food processing machine,conveyor belt automatic food processing machine |
||

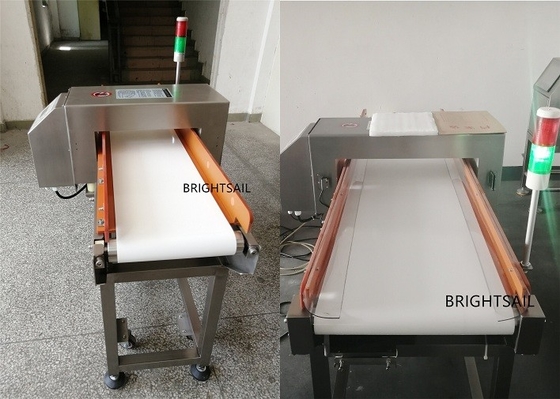

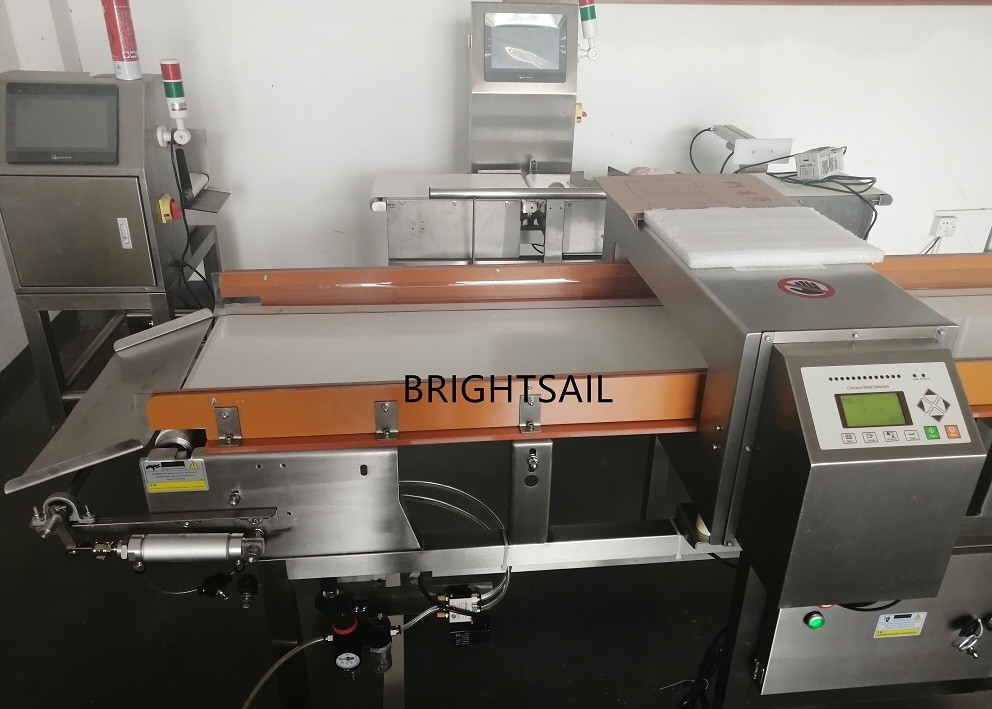

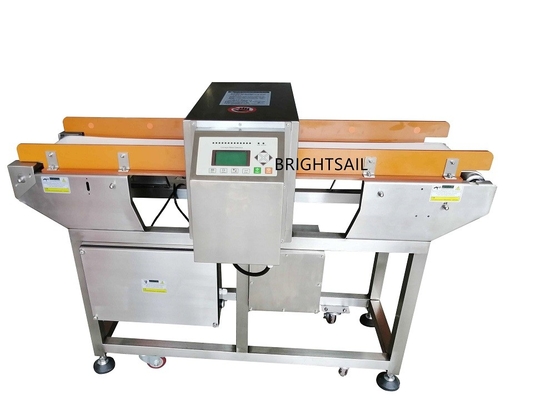

Food Industry Got CE Stainless Steel Conveyor Belt Metal Detector
This type of metal detector is mainly used to detect metal impurities and metal foreign bodies in food, bread, buns, steamed bread, dumplings, biscuits and other products, as well as drugs, toys, clothing, footwear, chemical, leather, knitting and other industries.
Technical Data:
| Model | XR-980 | ||||||||
| Type | standard machine | Non-standard machine (special specification) | |||||||
| Detection channel width(mm) | 400 | Non-standard machine (special specification) | |||||||
| Detecting channel height(mm)(≤200) | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 | |
| Calibration detection sensitivity | Iron ball diameter(Φmm) | ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 |
| Diameter of non-ferrous metals such as copper and aluminum(Φmm) | ≥1.2 | ≥1.2 | ≥1.5 | ≥1.5 | ≥2.5 | ≥3.0 | ≥4.0 | ≥4.5 | |
| 304 stainless steel ball diameter(Φmm) | ≥1.2 | ≥1.5 | ≥2.0 | ≥3.0 | ≥3.5 | ≥3.5 | ≥4.0 | ≥4.5 | |
| Type of alarm | Detect metal foreign matter automatically stop running, buzzer alarm or remove | ||||||||
| Material | The whole frame is made of 304 mirror stainless steel | ||||||||
| Size(mm) | 1330×750×1100(L×W×H) | ||||||||
| Weight | About 180KG | ||||||||
| Note: the above sensitivity parameters are the test results of the air machine without environmental interference,the actual application will be slightly different due to the interference of the use environment and the components of the detected object! | |||||||||
Advantages:
1. It has the characteristics of high detection accuracy, stable performance, and strong anti-interference ability.
2. It can be produced with multiple frequencies according to product characteristics, can store more than 100 product testing data, and has a wide range of applications.
3. Simple and friendly operation interface, parameters can be set quickly and conveniently through the simple key control interface;
4. Modular component replacement, convenient and quick maintenance.
5. Shockproof and waterproof design, anti-vibration and noise absorption, can adapt to harsh working environment.
6. Various reject devices can be added according to user needs.
