360-700kg Weight 4.07kw Bubble Cleaning Machine

360-700kg Weight 4.07kw Bubble Cleaning Machine
360-700kg Weight 4.07kw Bubble Cleaning Machine 360-700kg Weight 4.07kw Bubble Cleaning Machine 360-700kg Weight 4.07kw Bubble Cleaning Machine

Large Image :  360-700kg Weight 4.07kw Bubble Cleaning Machine

Product Details:
Place of Origin: China
Brand Name: Brightsail
Certification: CE ISO
Model Number: BSQP
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Container
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month

360-700kg Weight 4.07kw Bubble Cleaning Machine

Description
Speed: Frequency Control Product Name:: Lectrical Pressure Washer
Material: SUS304 Guarantee Period: 1Year
Power: 4.5kw Machinery Function: Cleaning&Washing
High Light:

4.07kw bubble cleaning machine

,

360kg Bubble Cleaning Machine

,

700kg Bubble Cleaning Machine

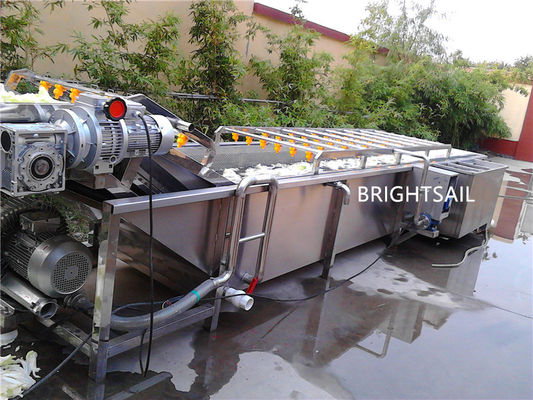

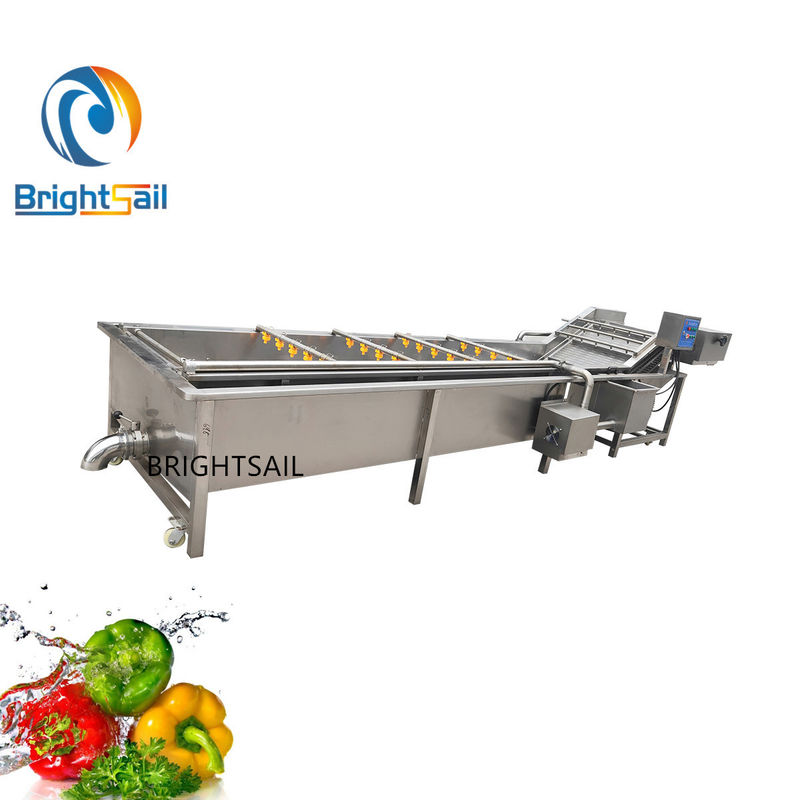

360-700 kg Weight High Pressure Bubble Cleaning Machine 4.07kw Power

Prodyct Description:

Bsqp vegetable bubble washer is mainly used for the cleaning of Toona sinensis, vegetables, fruits, fungi and other packaging, with a high degree of cleaning and can maintain the original color.



Technical Data:
Models BSQP-3500 BSQP-4000 BSQP-5000
Size(mm) 3500*1400*1350 4000*1600*1350 5000*1600*1350
Power(kw) 4.07 4.87 5.25
Mesh Belt's Width(mm) 600 800 800
Weight(kg) 360 500 700
Capacity(kg/h) 750 1250 1750
Speed

Frequency Control



Features Of BSQP Apple Bubble Washer:
This air bubble washing machine adopts SUS304 stainless steel chain plate mesh belt transmission. The mesh belt has high strength, small elasticity, is not easy to deform, easy to maintain and so on. The whole machine runs in balance with low noise, which greatly improves the working efficiency. When unloading, the material is transported directly from the equipment by lifting the mesh belt. The transmission reducer is controlled by frequency conversion. The mesh belt speed can be adjusted freely and the operation is stable.


Working Principle:

The principle of bubble cleaning machine is mainly used to inject appropriate amount of water into the shell of the equipment in front of the box. High pressure bubbles have the opportunity to generate a large number of dense bubbles in the box body, so that the product will be scrubbed through the box along with the drum. Under the combined action of the bubble cleaner and water, it will be in a rolling state and move forward with the mesh belt. When the water comes out, high-end nozzle will be used for high-pressure cleaning. Then enter the water partition area in the back half of the package, and then clean and cool the package again. Push it forward on the surface with the mesh belt, and wash the high-end with a nozzle under high pressure.



Product Description:
1.Ozone (Select function) and air bubble generator installed in this machine make water full of bubble and ozone to get deep cleaning effect during washing process.
2.It is with automatic purification function, so the water can be purified and then reused.
3.Conveying speed is adjustable depedning on washing material and your require.
4.Washing capacity can custom made from 100kg to 5000kg per hour.
5.We can offer you Subsequent equipment after washing machine such as peeling machine, flat roller machine, air-drying machine, cutting machine, package machine to make a complete production line.
6.We can offer you layout and machine design if you need.
7.We have a perfect after-sales service system and can sure machine's quality and using.
