Product Details:
|
| Motor Power（kw）: | 1.5-18.5 | Processing Fineness（um）: | 2-40 |
|---|---|---|---|
| Capacity（t/h）: | 0.01-10 | Weight(kg): | 60-400 |
| Boundary Dimension（L*W*H）: | Customized | Grinding Disc Diameter(mm): | 50-200 |
| Another Name: | Peanut Butter Machine | Function: | Grinding |
| High Light: | 1500w powder grinder machine,40um powder grinder machine,60kg powder grinder machine |
||
50-200MM Grinding Disc Diameter 900mm*850mm*1200mm MAX Boundary DimensionColloid Mill
Product Introduction of Colloid Mill:
The lab colloid mill is a machine for fine processing of fluid material, with superior ultra-fine crushing, dispersion emulsification, homogenization, mixing and other effects. the material particle size can reach from 2-50 microns after processing with this machine, and the degree of homogeneity is more than 90%, which is ultrafine ideal equipment for processing.
This colloid mill machine is suitable for ultrafine crushing of wet material (pharmaceuticals, food area, chemical area and other industries). It has the big advantages in crushing, emulsifying, homogenizing, and mixing for material.
Technical Data of Colloid Mill:
| Model |
Motor power (kw) |
Motor speed (r/min) |
Processing fineness (um) |
Capacity | Grinding disc diameter | Cooling water pipe | Outlet | Inlet | Weight |
Boundary dimension (L*W*H) |
| (t/h) | (mm) | (mm) | (mm) | (mm) | (kg) | (mm) | ||||
| BSQT-F50 | 1.5 | 2900 | 2-40 | 0.01-0.1 | 50 | 10 | 20 | 30 | 60 | 255*500*700 |
| BSQT-F65 | 1.5/2.2 | 2900 | 2-40 | 0.02-0.5 | 65 | 10 | 20 | 30 | 65 | 500*345*675 |
| BSQT-F80 | 3 | 2900 | 2-40 | 0.3-1 | 80 | 12 | 25 | 48 | 150 | 700*570*920 |
| BSQT-F100 | 5.5 | 2900 | 2-40 | 0.5-2 | 100 | 12 | 25 | 66 | 240 | 800*645*900 |
| BSQT-F120 | 7.5 | 2900 | 2-40 | 0.5-3 | 120 | 12 | 32 | 66 | 250 | 800*645*900 |
| BSQT-F140 | 11 | 2900 | 2-40 | 0.5-4 | 140 | 12 | 32 | 66 | 275 | 800*750*1020 |
| BSQT-F200 | 18.5 | 2900 | 2-40 | 1-10 | 200 | 12 | 38 | 100 | 400 | 900*850*1200 |
Features of Colloid Mill:
● Sanitary food-grade stainless steel. Except motor part, all contact parts are made of stainless steel, especially both dynamic grinding disc and static grinding disc are reinforced, making them better properties of corrosion-resistance and wear-resistance. In that case, the finished materials are non-pollution and safe.
● Colloid mill is an ideal equipment for processing fine materials with features of compact design, elegant appearance, good seal, stable performance, easy operation and high production efficiency.
● The motor and the base are separate in the split colloid mill, ensuring good stability, easy operation and a long service life of motor, furthermore it avoids material leakage to prevent motor from burning. It employs labyrinth seal, no wear, corrosion-resistance and less failure. Driving by pulley, it can change gear ratio, increase speed and make materials crushed finely.
● The vertical colloid mill solves the problem that small colloid mills couldn’t work continuously for a long time due to insufficient power and poor sealing. The motor is 220V, its advantages include compact overall structure, small size, light weight, reliable sealing structure and long hours of continuous work, especially suitable for small businesses and laboratory.
● How to know the capacity of a colloid mill ? The flow varies greatly according to materials of different density and viscosity. For example the flow of viscous paint and thin dairy fluids can be different more than 10 times on the same colloid mill.
● Capacity depends on concentration and viscosity of materials ? A colloid mill mainly consists of a motor, grinding parts, driving and base part. Among them, dynamic grinding core and static grinding core are key parts. So you may need to choose different models according to nature of materials.
● Various colloid mill are small vibration, work smoothly and no need foundation.

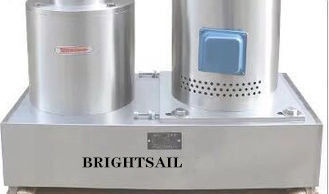

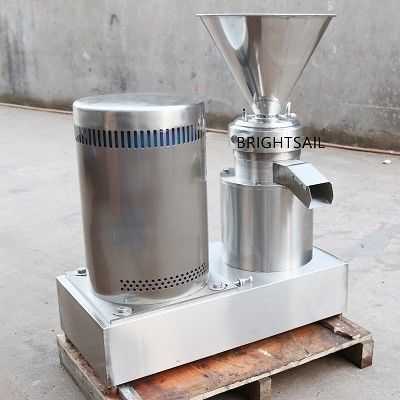

Detailed Pictures:
