Product Details:
|
| Motor Power（kw）: | 1.5-18.5 | Processing Fineness（um）: | 2-40 |
|---|---|---|---|
| Motor Speed（r/min）: | 2900 | Cooling Water Pipe(mm): | 10-12 |
| Grinding Disc Diameter(mm): | 50-200 | Finished Product: | Peanut Butter,sesame Paste |
| Another Name: | Sesame Grinding Machine | Function: | Grinding |
| High Light: | 50mm peanut butter colloid mill,200mm peanut butter colloid mill,18.5kw peanut butter colloid mill |
||
60 - 400kg Weight 50 - 200mm Grinding Disc Diameter Peanut Butter Colloid Mill
Product Introduction of Peanut Butter Colloid Mill:
The colloid mill for sale is a machine for fine processing of fluid material, with superior ultra-fine crushing, dispersion emulsification, homogenization, mixing and other effects. the material particle size can reach from 2-50 microns after processing with this machine, and the degree of homogeneity is more than 90%, which is ultrafine ideal equipment for processing.
This colloid mill is suitable for ultrafine crushing of wet material (pharmaceuticals, food area, chemical area and other industries). It has the big advantages in crushing, emulsifying, homogenizing, and mixing for material.
Technical Data of Peanut Butter Colloid Mill:
| Model |
Motor power (kw) |
Motor speed (r/min) |
Processing fineness (um) |
Capacity | Grinding disc diameter | Cooling water pipe | Outlet | Inlet | Weight |
Boundary dimension (L*W*H) |
| (t/h) | (mm) | (mm) | (mm) | (mm) | (kg) | (mm) | ||||
| BSQT-F50 | 1.5 | 2900 | 2-40 | 0.01-0.1 | 50 | 10 | 20 | 30 | 60 | 255*500*700 |
| BSQT-F65 | 1.5/2.2 | 2900 | 2-40 | 0.02-0.5 | 65 | 10 | 20 | 30 | 65 | 500*345*675 |
| BSQT-F80 | 3 | 2900 | 2-40 | 0.3-1 | 80 | 12 | 25 | 48 | 150 | 700*570*920 |
| BSQT-F100 | 5.5 | 2900 | 2-40 | 0.5-2 | 100 | 12 | 25 | 66 | 240 | 800*645*900 |
| BSQT-F120 | 7.5 | 2900 | 2-40 | 0.5-3 | 120 | 12 | 32 | 66 | 250 | 800*645*900 |
| BSQT-F140 | 11 | 2900 | 2-40 | 0.5-4 | 140 | 12 | 32 | 66 | 275 | 800*750*1020 |
| BSQT-F200 | 18.5 | 2900 | 2-40 | 1-10 | 200 | 12 | 38 | 100 | 400 | 900*850*1200 |
Working Method of Peanut Butter Colloid Mill:
This machine is based on the relative motion of the stator and rotor of different geometric shapes under high-speed rotation. When the processed material passes through the adjustable stator and rotor gap under the action of its own weight, air pressure and centrifugal force, it receives a strong shear force , Friction, impact, high frequency vibration and other composite forces are effectively broken, dispersed, emulsified and mixed to obtain the ideal product.
The crushing room is equipped with three grinding areas, the first level is the coarse grinding area, the second level is the fine grinding area, and the third level is the ultrafine grinding area. By adjusting the gap between the stator and the rotor, the required super Micro-crushing effect (can also be recycled).
Features of Peanut Butter Colloid Mill:
Sanitary food grade stainless steel. Except for the motor part, all contact parts are made of stainless steel, especially the moving and static grinding discs are made of reinforced materials, which have better corrosion resistance and wear resistance. In this case, the finished material is pollution-free and safe.
The colloid mill has the characteristics of compact design, beautiful appearance, good sealing, stable performance, convenient operation and high production efficiency. It is an ideal equipment for processing fine materials.
The motor and the base are separated in the split colloid mill, with good stability, convenient operation, long service life of the motor, avoiding material leakage and preventing the motor from burning out.
It adopts labyrinth seal, no abrasion, corrosion resistance and few failures. It adopts belt pulley to drive, change speed and accelerate, so that the material can be crushed finely.
The vertical colloid mill solves the problem that the small colloid mill cannot work continuously for a long time due to insufficient power and poor sealing. The motor is 220V, and its advantages are compact overall structure, small size, light weight, reliable sealing structure, long continuous working time, and especially suitable for small businesses and laboratories.
About Capacity of Peanut Butter Colloid Mill:
Colloidal mill type size determines its output? Colloidal mill flow is not constant, different concentration, viscosity of materials, flow changes greatly.
Such as: the same equipment in the processing of viscous paint materials and thin milk fluid, the flow can be more than 10 times.

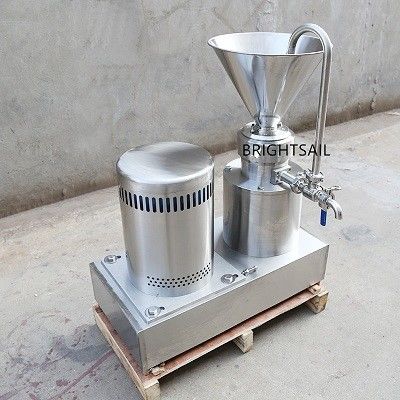

Detailed Pictures:
