Product Details:
|
| Motor Power（kw）: | 1.5-18.5 | Capacity(t/h): | 0.01-10 |
|---|---|---|---|
| Applicable Materials: | Fruit Vegetable Nuts | Weight(kg): | 60-400 |
| Boundary Dimension（L*W*H）: | Customized | Processing Fineness: | 2-40um |
| Anither Name: | Peanut Butter Making Machine | Function: | Crushing |
| High Light: | 38mm Outlet Peanut Butter Grinder,20mm Outlet Peanut Butter Grinder,100mm Inlet Peanut Butter Grinder |
||
30 ~ 100mm Inlet 20 ~ 38mm Outlet Multifunctional Machine That Makes Peanut Butter
Product Introduction Of Machine That Makes Peanut Butte:
Peanut butter grinder machine is a kind of fine processing machine for fluid materials. It has excellent effects of superfine grinding, dispersing emulsification, homogenization and mixing. The particle size of the material processed by this machine can reach 2-50 microns, and the uniformity can reach more than 90%.
Our sesame processing machine is an ideal equipment for superfine processing. This machine is suitable for superfine grinding of wet materials (pharmaceutical, food, chemical, etc.). The utility model has the advantages of crushing, emulsifying, homogenizing, mixing, etc.
Technical Data Of Machine That Makes Peanut Butte:
| Model |
Motor power (kw) |
Motor speed (r/min) |
Processing fineness (um) |
Capacity | Grinding disc diameter | Cooling water pipe | Outlet | Inlet | Weight |
Boundary dimension (L*W*H) |
| (t/h) | (mm) | (mm) | (mm) | (mm) | (kg) | (mm) | ||||
| BSQT-F50 | 1.5 | 2900 | 2-40 | 0.01-0.1 | 50 | 10 | 20 | 30 | 60 | 255*500*700 |
| BSQT-F65 | 1.5/2.2 | 2900 | 2-40 | 0.02-0.5 | 65 | 10 | 20 | 30 | 65 | 500*345*675 |
| BSQT-F80 | 3 | 2900 | 2-40 | 0.3-1 | 80 | 12 | 25 | 48 | 150 | 700*570*920 |
| BSQT-F100 | 5.5 | 2900 | 2-40 | 0.5-2 | 100 | 12 | 25 | 66 | 240 | 800*645*900 |
| BSQT-F120 | 7.5 | 2900 | 2-40 | 0.5-3 | 120 | 12 | 32 | 66 | 250 | 800*645*900 |
| BSQT-F140 | 11 | 2900 | 2-40 | 0.5-4 | 140 | 12 | 32 | 66 | 275 | 800*750*1020 |
| BSQT-F200 | 18.5 | 2900 | 2-40 | 1-10 | 200 | 12 | 38 | 100 | 400 | 900*850*1200 |
Features Of Sesame Butter Making Machine:
1. Sanitary food grade stainless steel. All contact parts except motor parts are made of stainless steel, especially the dynamic and static grinding plates are made of reinforced materials with better corrosion resistance and wear resistance. In this case, the finished material is pollution-free and safe.
2. The colloid mill has the characteristics of compact design, beautiful appearance, good sealing, stable performance, convenient operation and high production efficiency. It is an ideal equipment for processing fine materials.
3. The vertical colloid mill solves the problem that the small colloid mill can not work continuously for a long time because of insufficient power and poor sealing.
Working Principle Of Machine That Makes Peanut Butte:
The basic principle of colloidal grinding is that fluid or semi fluid materials are subjected to strong shear force, friction and high frequency vibration through the fixed teeth connected at high speed. Grinding and grinding tooth profile gradient relative motion, one of which rotates at high speed, the other still makes the material pass through the shear force and friction between oblique materials, and effectively smashes the emulsification under the action of complex forces such as high-frequency vibration and high-speed vortex.

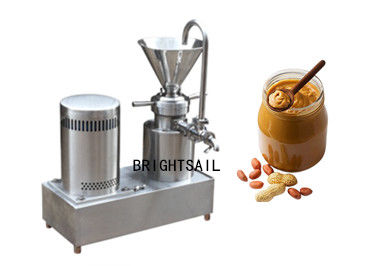

Detailed Pictures Of Machine That Makes Peanut Butte:
Finished Products Of Machine That Makes Peanut Butte:
We also can provide other types of machines for you to deal with nuts meat,please contact us if you have any interests......
