Product Details:
|
| Motor Power（kw）: | 1.5-18.5 | Capacity: | 10-10000kg/h |
|---|---|---|---|
| Applicable Materials: | Fruit Vegetable Nuts | Weight: | 250kg |
| Boundary Dimension（L*W*H）: | 800mm*750mm*1020mm | Processing Fineness: | 2-40um |
| Anither Name: | Jam Machine | Function: | Grinding |
| High Light: | 400kg fruit jam making machine,1.5kw fruit jam making machine,2um fruit jam making machine |
||
400kg Maximum Weight 10 tons per hour Maximuum Capacity Jam Making Machine
Product Introduction Of Jam Making Machine:
The jam machine is a machine for fine processing of fluid materials. It has excellent superfine pulverization, dispersion emulsification, homogenization and mixing effects. The particle size of the materials processed by this machine can reach 2-50 microns, and the uniformity can reach more than 90%.
Our fruit jam making machine is ideal equipment for ultra-fine processing. This machine is suitable for ultrafine grinding of wet materials (pharmaceutical, food, chemical, etc.). The utility model has the advantages of crushing, emulsification, homogenization, mixing and the like.
Technical Data Of Jam Making Machine:
| Model |
Motor power (kw) |
Motor speed (r/min) |
Processing fineness (um) |
Capacity | Grinding disc diameter | Cooling water pipe | Outlet | Inlet | Weight |
Boundary dimension (L*W*H) |
| (t/h) | (mm) | (mm) | (mm) | (mm) | (kg) | (mm) | ||||
| BSQT-F50 | 1.5 | 2900 | 2-40 | 0.01-0.1 | 50 | 10 | 20 | 30 | 60 | 255*500*700 |
| BSQT-F65 | 1.5/2.2 | 2900 | 2-40 | 0.02-0.5 | 65 | 10 | 20 | 30 | 65 | 500*345*675 |
| BSQT-F80 | 3 | 2900 | 2-40 | 0.3-1 | 80 | 12 | 25 | 48 | 150 | 700*570*920 |
| BSQT-F100 | 5.5 | 2900 | 2-40 | 0.5-2 | 100 | 12 | 25 | 66 | 240 | 800*645*900 |
| BSQT-F120 | 7.5 | 2900 | 2-40 | 0.5-3 | 120 | 12 | 32 | 66 | 250 | 800*645*900 |
| BSQT-F140 | 11 | 2900 | 2-40 | 0.5-4 | 140 | 12 | 32 | 66 | 275 | 800*750*1020 |
| BSQT-F200 | 18.5 | 2900 | 2-40 | 1-10 | 200 | 12 | 38 | 100 | 400 | 900*850*1200 |
Features Of Jam Making Machine:
1. Sanitary food grade stainless steel. Except Motor parts, all contact parts are made of stainless steel, especially the dynamic and static grinding plates are made of reinforced materials, with better corrosion resistance and wear resistance. In this case, the finished material is pollution-free and safe.
2. The colloid mill has the characteristics of compact design, beautiful appearance, good sealing, stable performance, convenient operation and high production efficiency. It is an ideal equipment for processing fine materials.
3. The vertical colloid mill solves the problem that the small colloid mill can not work continuously for a long time because of insufficient power and poor sealing.
Working Principle Of Jam Making Machine:
The basic principle of colloidal grinding is that fluid or semi fluid materials are subjected to strong shear force, friction and high frequency vibration through high-speed fixed teeth. Grinding and grinding tooth profile gradient relative motion, on the one hand high-speed rotation, on the other hand still make the material through shear force and material oblique friction, effectively break the emulsification effect of high-frequency vibration and high-speed vortex and other complex forces.

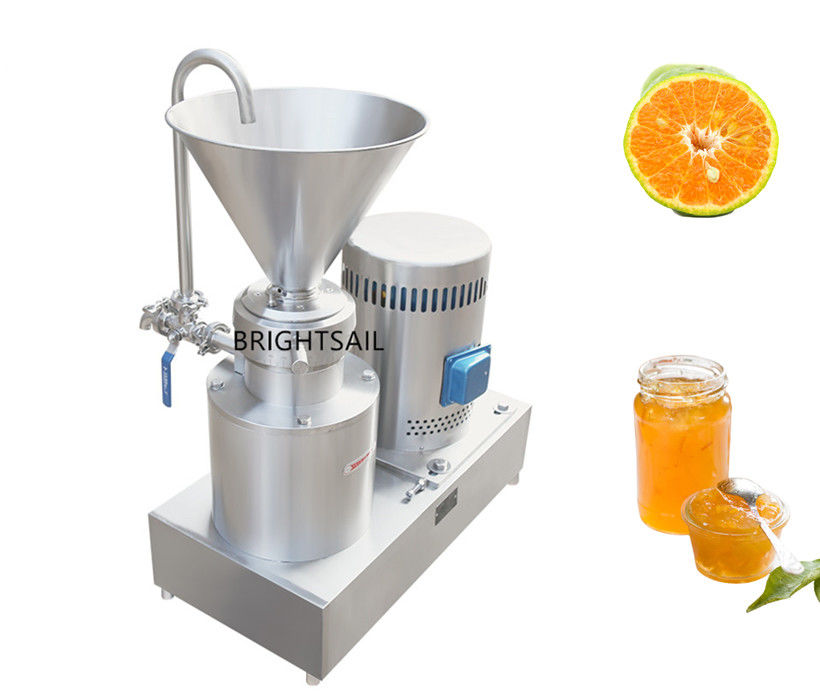

Detailed Pictures Of Jam Making Machine:
Finished Products Of Jam Making Machine:
We also can provide other types of machines for you to deal with nuts meat,please contact us if you have any interests......
