Product Details:
|
| Product Name: | Grain Pulverizer Powder Making Machine Ultrafine Pulverizer | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Applicable Materials: | Herb,leaf, | Capacity: | 20-1800kg/h |
| Discharge Motor(kw): | 0.75-1.5 | Grading Impeller Speed(rpm): | 3000-4000 |
| Crusher Motor: | 11-75 Kw | Another Name: | Herb Powder Grinder Machine |
| High Light: | 2500mesh cassava leaves grinding machine,60mesh cassava leaves grinding machine,0.75kw cassava leaves grinding machine |
||
60 To 2500 Mesh Cassava Leaves Grinding Machine
Product intrduction of Cassava Leaves Grinding Machine:
BSP is composed of crusher, cyclone separator, dust collector, fan, electric control box, etc.
Our machine has the functions of dust selection, no screen, no net, uniform particle size, and continuous processing. In line with the international advanced level, it is suitable for the crushing of materials in the pharmaceutical, chemical, food and other industries.
Working method of Cassava Leaves Grinding Machine:
The raw materials are transported to the crushing chamber through the Hopper, the screw feeder to the shear and trim of the high-speed cutting machine, and then moved to the cyclone separator and the raw materials of the bag filter to suction the negative pressure method, and the discharge materials meet the product requirements. This is why BSP Herbal Medicine Grinders can be used commercially to make ultrafine powders and fine powder grinders.
Main components of Cassava Leaves Grinding Machine:

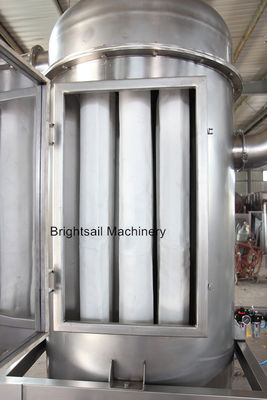

1. Pulse dust remover: collect dust into the dust remover. There are several dust bags in the box. The dust bag bracket is also made of stainless steel for easy disassembly. Pulse spray cleaning, easy to collect dust.

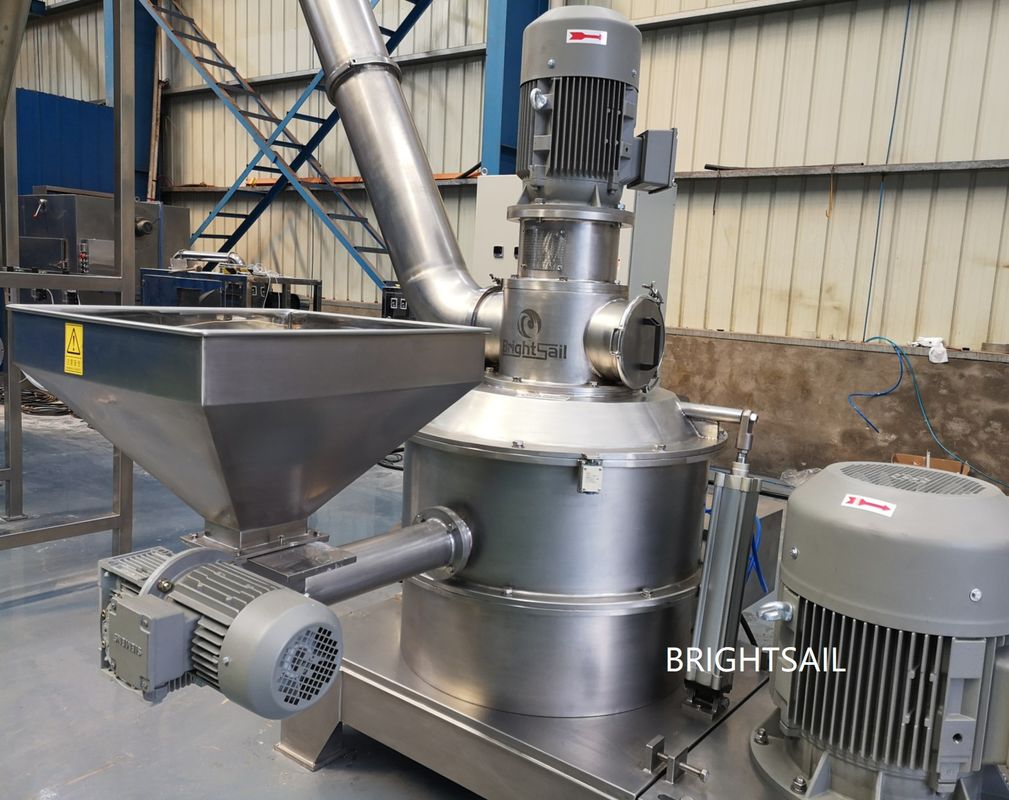

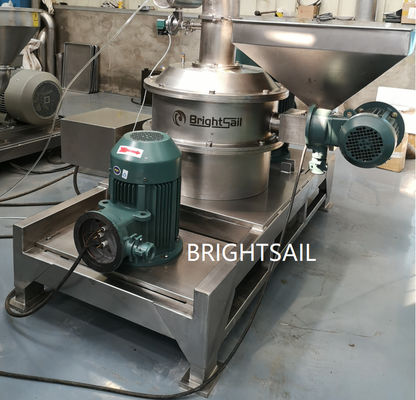

2. Crusher part: Left Motor for the crusher motor, right motor for electromechanical machinery. Use small spiral feeder to ensure uniform and controllable feeding speed.
3. Materials through the screw conveyor into the grinding chamber, through the rapid rotation of the blade in the grinding chamber cutting grinding. The powder passes through the guide ring into the classification chamber.
4. Cyclone separators: Cyclone separators can separate dust and powder (particles) . The Rotary Valve is made of stainless steel with uniform powder speed. Easy to clean and disassemble.
Technical data of Cassava Leaves Grinding Machine:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 |
3100 |
Main features of Cassava Leaves Grinding Machine:
(1) The structure is simple and easy to install and maintain.
(2) The grinding chamber is surrounded by a water cooling sleeve, and the bearing can cool the machine.
(3) Motors, electrical appliances, bearings and running parts are all of the world's advanced brands.
(4) There is no dust in the production process, so the dust can be collected in the dust box.
(5) The particle size can be changed without changing the screen speed.
Drawing of Cassava Leaves Grinding Machine:
Our Services:
1. Pre-sale service:
24-hour consultation and consulting support;
Machine sample testing service;
Factory visit
2. After-sales service:
Guide the installation and use of the machine;
One-year warranty;
Video support;
Engineers can go to the user's factory to assist in installation and training.
