Product Details:
|
| Product Name: | Leaf Grinder | Capacity: | 10-500kg/h |
|---|---|---|---|
| Fineness: | 12-120 Mesh | Voltage: | Customized |
| Application: | Foodstuff Industry,pharmacy,chemical... | Other Name: | Leaf Grinding Machine |
| Advantage: | Wide Application | Other Name: | Tea Leaf Grinder |
| High Light: | 12 mesh leaf grinder machine,120 mesh leaf grinder machine,10kg per hr capacity leaf grinder |
||

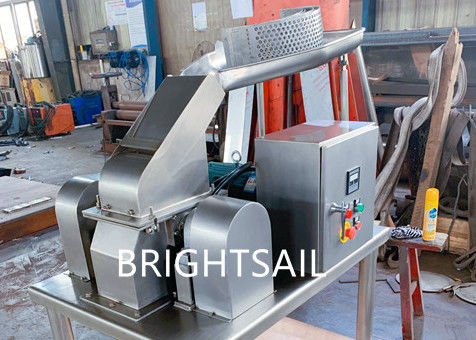

12 To 120 Mesh Fineness 10 To 500kg Per Hr Capacity Leaf Grinder
Our company's BSF series high efficient crusher is designed according to the principle of mixed powder spraying, and is widely used in pharmaceutical, food, chemical and other industries. Suitable for grinding herbs, tea, vegetable leaves, sorghum leaves.
Working Method:tea leaf grinding machine

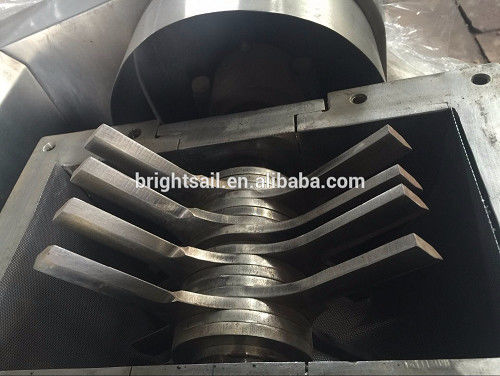

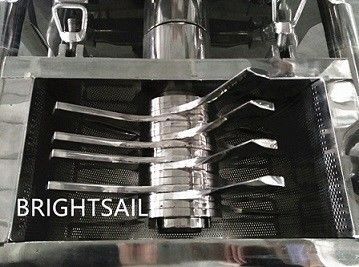

This crusher is a high-speed equipment. The material is crushed by the high-speed sharp blade on one side and the impact blade on the other side. Blades of different sizes and shapes can be selected according to different materials.
The particle size can be obtained by changing the screen surface or adjusting the rotating speed.
Main Features:tea leaf grinding machine
1. Simple structure, easy to install, disassemble and clean the crushing cavity.
2. Smooth operation, low noise and low vibration.
3. The operation is simple, and the particle size can be controlled by changing the screen.
4. Pneumatic components, electrical components, and operating components are all of the world's advanced brands.
Technical Data:tea leaf grinding machine
| Model | BSF-8 | BSF-16 | BSF-32 |
| Capacity (kg/h) | 10-100 | 50-300 | 100-500 |
| Fineness of finished products (mesh) | 12-120 | 12-120 | 12-120 |
| Power (KW) | 4 | 7.5 | 11 |
| Speed change (RPM) | 2350-4260 | 1000-2400-4400 | 1000-2400-4400 |
| Overall size (L*W*H)(mm) | 1050*600*1600 | 1100*860*1600 | 1280*950*1600 |
| Weight(kg) | 150 | 250 | 320 |
Drawing:tea leaf grinding machine
Crushing Effect:tea leaf grinding machine
