Product Details:
|
| Product Name: | Peanut Butter Maker Machine | Another Name: | Peanut Butter Making |
|---|---|---|---|
| Boundary Dimension（L*W*H）: | 800mm*645mm*900mm | Cooling Water Pipe(mm): | 10-12 |
| Outlet(mm): | 20-38 | Maximum Capacity: | 10t/h |
| Material: | Stainless Steel, SS304 | Another Name: | Peanut Butter Grinder |
| High Light: | 38mm small peanut butter making machine,food hygiene grade powder grinder machine,powder grinder machine 10t/h |
||
Food Hygiene Grade Stainless Steel Large Capacity Peanut Butter Maker Machine
Product Introduction:peanut butter making
Colloid mill machine is a machine for fine machining of fluid materials.This butter machine has the functions of ultra-fine crushing, dispersing, emulsifying, homogenizing and mixing. After machine processing, the particle size of the material can reach 2-50 microns, the uniformity can reach 90% .
Peanut butter maker is an ideal equipment for ultra-fine machining. This penut butter machine is suitable for ultra-fine grinding of wet material (pharmacy, food, chemical industry, etc.) . The utility model has the advantages of crushing, emulsifying, homogenizing and mixing materials, etc. .
Technical Data:peanut butter making
| Model | Motor power (kw) |
Motor speed (r/min) |
Processing fineness(um) |
Capacity (t/h) |
Grinding disc diameter(mm) |
Cooling water pipe(mm) |
Outlet (mm) |
Inlet (mm) |
Weight (kg) |
Boundary dimension (L*W*H)(mm) |
| BSQT-F50 | 1.5 | 2900 | 2-40 | 0.01-0.1 | 50 | 10 | 20 | 30 | 60 | 255*500*700 |
| BSQT-F65 | 1.5/2.2 | 2900 | 2-40 | 0.02-0.5 | 65 | 10 | 20 | 30 | 65 | 500*345*675 |
| BSQT-F80 | 3 | 2900 | 2-40 | 0.3-1 | 80 | 12 | 25 | 48 | 150 | 700*570*920 |
| BSQT-F100 | 5.5 | 2900 | 2-40 | 0.5-2 | 100 | 12 | 25 | 66 | 240 | 800*645*900 |
| BSQT-F120 | 7.5 | 2900 | 2-40 | 0.5-3 | 120 | 12 | 32 | 66 | 250 | 800*645*900 |
| BSQT-F140 | 11 | 2900 | 2-40 | 0.5-4 | 140 | 12 | 32 | 66 | 275 | 800*750*1020 |
| BSQT-F200 | 18.5 | 2900 | 2-40 | 1-10 | 200 | 12 | 38 | 100 | 400 | 900*850*1200 |
Features:peanut butter making
Sanitary food grade stainless steel. Except for the motor part, all contact parts are made of stainless steel, especially the dynamic and static grinding plates are made of reinforced materials, which have good corrosion resistance and wear resistance. In this case, the finished material is pollution-free and safe. The colloid mill has the characteristics of compact design, beautiful appearance, good sealing, stable performance, convenient operation and high production efficiency. It is an ideal equipment for processing fine materials. The motor and the base are separated in the split colloid mill, with good stability, convenient operation, long service life of the motor, avoiding material leakage and preventing the motor from burning out. Labyrinth seal, no wear, corrosion resistance, less trouble. The belt pulley is used to drive and accelerate to break the material. The vertical colloid mill solves the problem that the small colloid mill can not work continuously for a long time due to insufficient power and poor sealing. The motor is 220 V, which has the advantages of compact structure, small volume, light weight, reliable sealing structure and long continuous working time. It is especially suitable for small enterprises and laboratories.

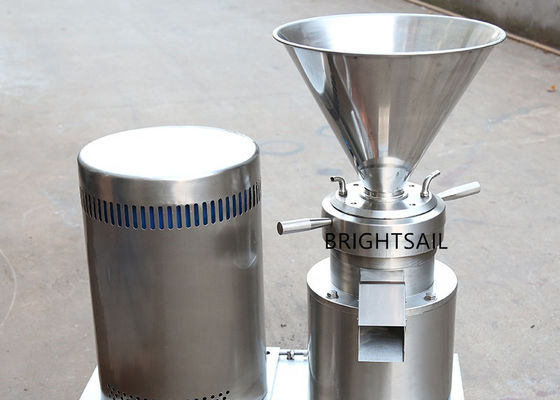

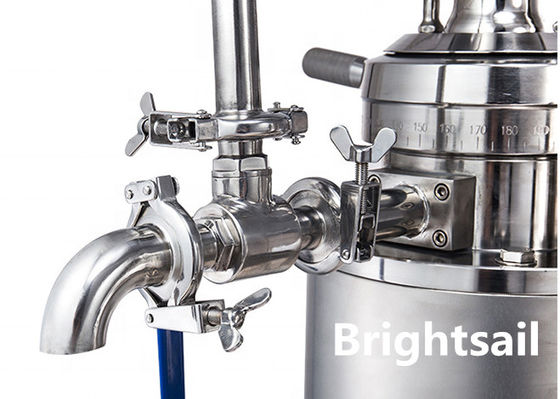

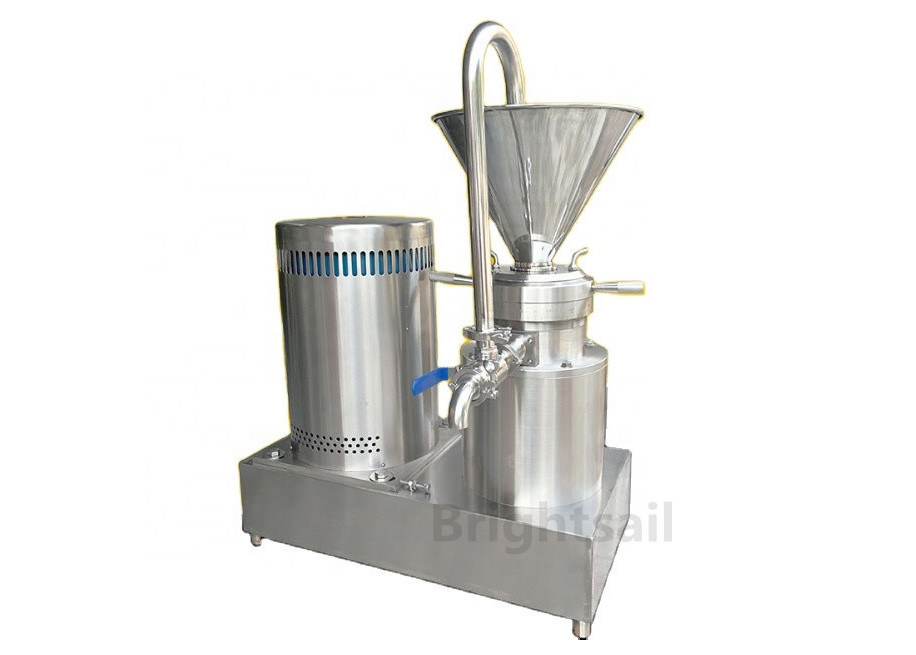

Detailed Picture:peanut butter making
How can I buy this machine?
First, discuss the details and prices of all machines with our salesperson.
Second, confirm the price and payment terms. Trade guarantee / tt / trusteeship / Western Union remittance, etc.
Thridy, send us a purchase order, confirm the proforma invoice and arrange the deposit. Once we receive the deposit, we will arrange production.
Finally, after the machine is ready, please arrange the balance to us. After receiving the balance, we will arrange space booking and send the machine to you.
