Product Details:
|
| Product Name: | Machine For Making Peanut Butter | Other Name: | Sesame Grinder |
|---|---|---|---|
| Final Product: | Sesame Oaste,peanut Butter,jam,juice,soybean Milk... | Cooling Water Pipe(mm): | 10-12 |
| Outlet(mm): | 20-38 | Maximum Capacity: | 10t/h |
| Material: | Stainless Steel, SS304 | Another Name: | Colloid Machine |
| High Light: | 10tons per hr powder grinder machine,38mm machine for making peanut butter,10t/h machine for making peanut butter |
||
New Food Grade 10 Tons Per Hr Maximum Capacity Machine For Making Peanut Butter
Product Introduction:machine for making peanut butter
Peanut butter colloid mill is a kind of machinery for precision machining of fluid materials.
The peanut paste machine has the functions of ultra-fine grinding, dispersion, emulsification, homogenization and mixing. After machining, the particle size of the material can reach 2-50 microns and the uniformity can reach 90%.
This colloid mill is an ideal equipment for ultra precision processing. The nut butter machine is suitable for ultra-fine grinding of wet materials (pharmaceutical, food, chemical and other industries). The utility model has the advantages of crushing, emulsifying, homogenizing, mixing materials, etc.
Technical Data:machine for making peanut butter
| Model | Motor power (kw) |
Motor speed (r/min) |
Processing fineness(um) |
Capacity (t/h) |
Grinding disc diameter(mm) |
Cooling water pipe(mm) |
Outlet (mm) |
Inlet (mm) |
Weight (kg) |
Boundary dimension (L*W*H)(mm) |
| BSQT-F50 | 1.5 | 2900 | 2-40 | 0.01-0.1 | 50 | 10 | 20 | 30 | 60 | 255*500*700 |
| BSQT-F65 | 1.5/2.2 | 2900 | 2-40 | 0.02-0.5 | 65 | 10 | 20 | 30 | 65 | 500*345*675 |
| BSQT-F80 | 3 | 2900 | 2-40 | 0.3-1 | 80 | 12 | 25 | 48 | 150 | 700*570*920 |
| BSQT-F100 | 5.5 | 2900 | 2-40 | 0.5-2 | 100 | 12 | 25 | 66 | 240 | 800*645*900 |
| BSQT-F120 | 7.5 | 2900 | 2-40 | 0.5-3 | 120 | 12 | 32 | 66 | 250 | 800*645*900 |
| BSQT-F140 | 11 | 2900 | 2-40 | 0.5-4 | 140 | 12 | 32 | 66 | 275 | 800*750*1020 |
| BSQT-F200 | 18.5 | 2900 | 2-40 | 1-10 | 200 | 12 | 38 | 100 | 400 | 900*850*1200 |
Features:machine for making peanut butter
Sanitary food grade stainless steel. Except for the motor part, all contact parts are made of stainless steel, especially the dynamic and static grinding plates are made of reinforced materials, which have good corrosion and wear resistance. In this case, the finished material is pollution-free and safe. The colloid mill has the advantages of compact design, beautiful appearance, good sealing, stable performance, convenient operation and high production efficiency. It is an ideal equipment for processing fine materials. The motor and base are separated in the split colloid mill, with good stability, convenient operation, long service life of the motor, avoiding material leakage and burning out of the motor. Labyrinth seal, no wear, corrosion resistance and less failure. The pulley is used to drive and accelerate the crushing of materials. The vertical sesame butter making machine solves the problem that the small colloid mill can not work continuously for a long time due to insufficient power and poor sealing. The motor adopts 220V, with compact structure, small volume, light weight, reliable sealing structure and long continuous working time. It is especially suitable for small enterprises and laboratories.
How to choose the right colloid mill?
Check the model number: The structure type of the colloid mill and the diameter (mm) of the grinding disc determine the capacity of the grinding disc. Inspection ability: The ability of colloid mills varies greatly according to the density and viscosity of different materials. Circulation tube: suitable for low-viscosity materials that need to be recycled back and crushed, such as soy milk, mung bean beverages, etc. Rectangular inlet: suitable for high and medium viscosity materials that do not require reflow or grinding, such as peanut butter, chili sauce, etc.

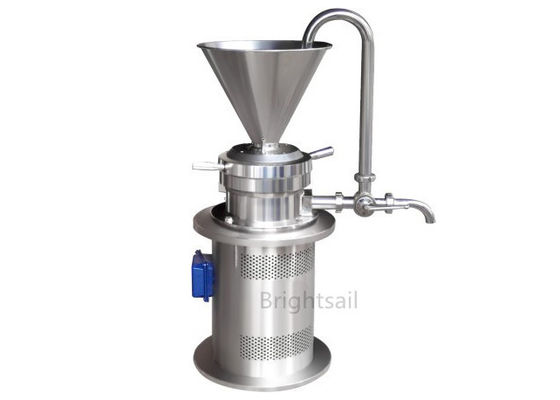

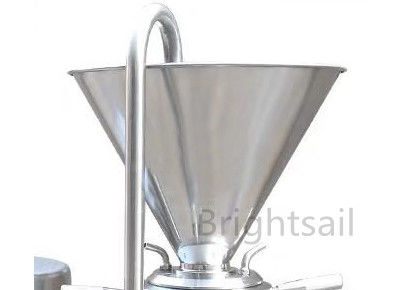

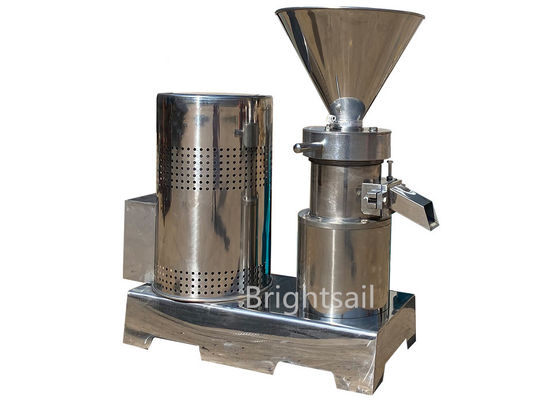

Detailed Picture:machine for making peanut butter
