Product Details:
|
| Product Name: | Paste Grinding Machine | Other Name: | Peanut Butter Processing Machine |
|---|---|---|---|
| Final Product: | Sesame Oaste,peanut Butter,jam,juice,soybean Milk... | Cooling Water Pipe(mm): | 10-12 |
| Weight(kg): | 60-400 | Maximum Capacity: | 10t/h |
| Material: | Stainless Steel, SS304 | Another Name: | Colloid Mill For Sale |
| High Light: | 20um paste grinding machine,40um paste grinding machine,10t/h paste grinding machine |
||
Manufacturer Of Custom 20 To 40um Processing Fineness Paste Grinding Machine
Product Introduction:machine peanut butter

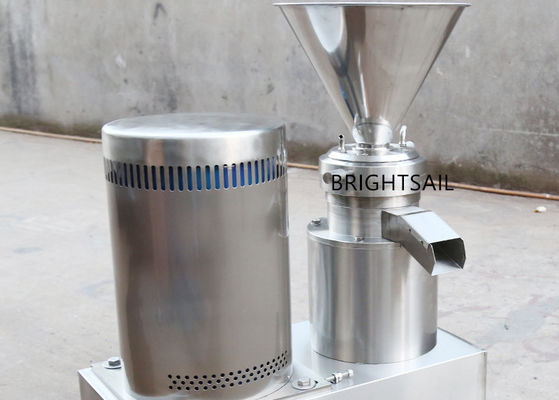

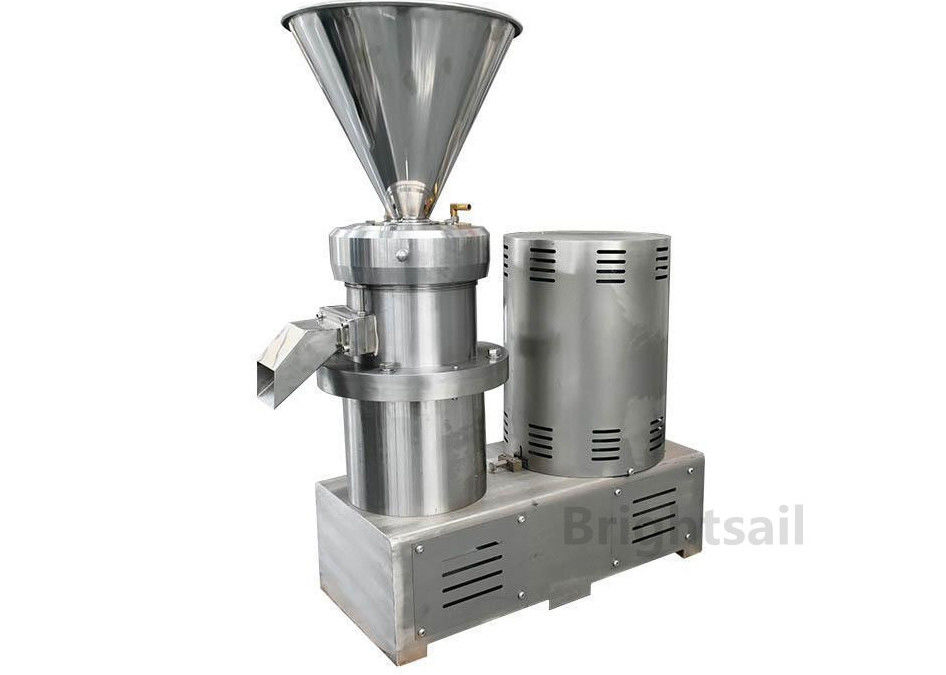

The sesame machine is one kind carries on the precision processing machinery to the fluid material. The machine has the functions of ultra-fine grinding, dispersing, emulsifying, homogenizing and mixing. The particle size of the processed material can reach 2-50 microns, and the uniformity can reach 90% . This small peanut butter machine is an ideal equipment for ultra-precision machining. Nut Jam machine is suitable for ultra-fine grinding of wet materials (pharmaceutical, food, chemical and other industries) . The utility model has the advantages of crushing, emulsifying, homogenizing, mixing materials, etc.
Technical Data:machine peanut butter
| Model | Motor power (kw) |
Motor speed (r/min) |
Processing fineness(um) |
Capacity (t/h) |
Grinding disc diameter(mm) |
Cooling water pipe(mm) |
Outlet (mm) |
Inlet (mm) |
Weight (kg) |
Boundary dimension (L*W*H)(mm) |
| BSQT-F50 | 1.5 | 2900 | 2-40 | 0.01-0.1 | 50 | 10 | 20 | 30 | 60 | 255*500*700 |
| BSQT-F65 | 1.5/2.2 | 2900 | 2-40 | 0.02-0.5 | 65 | 10 | 20 | 30 | 65 | 500*345*675 |
| BSQT-F80 | 3 | 2900 | 2-40 | 0.3-1 | 80 | 12 | 25 | 48 | 150 | 700*570*920 |
| BSQT-F100 | 5.5 | 2900 | 2-40 | 0.5-2 | 100 | 12 | 25 | 66 | 240 | 800*645*900 |
| BSQT-F120 | 7.5 | 2900 | 2-40 | 0.5-3 | 120 | 12 | 32 | 66 | 250 | 800*645*900 |
| BSQT-F140 | 11 | 2900 | 2-40 | 0.5-4 | 140 | 12 | 32 | 66 | 275 | 800*750*1020 |
| BSQT-F200 | 18.5 | 2900 | 2-40 | 1-10 | 200 | 12 | 38 | 100 | 400 | 900*850*1200 |
Features:machine peanut butter
1. Sanitary food grade stainless steel. Except for the motor part, all contact parts are made of stainless steel, especially the dynamic and static grinding discs are strengthened, which has better corrosion and wear resistance. In this case, the finished material is pollution-free and safe.
2. The colloid mill has compact design, beautiful appearance, good sealing, stable performance, convenient operation and high production efficiency. It is an ideal equipment for processing fine materials.
3. In the split colloid mill, the motor is separated from the base, with good stability, convenient operation and long service life, so as to avoid material leakage and motor burnout. Labyrinth seal is adopted, which has no wear and corrosion resistance and reduces faults. Driven by belt pulley, the transmission ratio can be changed, the speed can be improved, and the materials can be crushed more finely.
4. The vertical colloid mill solves the problem that the small colloid mill cannot work continuously for a long time due to insufficient power and poor sealing. The motor is 220V, with compact overall structure, small volume, light weight, reliable sealing structure and long continuous working time. It is especially suitable for small enterprises and laboratories.
5. All kinds of colloid mills have small vibration and stable operation without foundation.
How to choose the right colloid mill?
Check the model number: The structure type of the colloid mill and the diameter (mm) of the grinding disc determine the capacity of the grinding disc. Inspection ability: The ability of colloid mills varies greatly according to the density and viscosity of different materials.

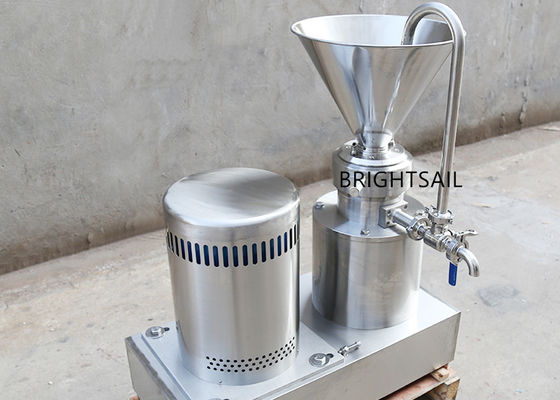

Circulation tube: suitable for low-viscosity materials that need to be recycled back and crushed, such as soy milk, mung bean beverages, etc.
Rectangular inlet: suitable for high and medium viscosity materials that do not require reflow or grinding, such as peanut butter, chili sauce, etc.
