Product Details:
|
| Product Name: | Butter Making Machine | Other Name: | Sesame Processing Machine |
|---|---|---|---|
| Final Product: | Sesame Oaste,peanut Butter,jam,juice,soybean Milk... | Cooling Water Pipe(mm): | 10-12 |
| Motor Speed (r/min): | 2900 | Maximum Capacity: | 10t/h |
| Material: | Stainless Steel, SS304 | Another Name: | Colloid Mill Peanut Butter |
| High Light: | 2900r/min peanut butter making machine,10t/h peanut butter making machine,ss304 mini peanut butter making machine |
||

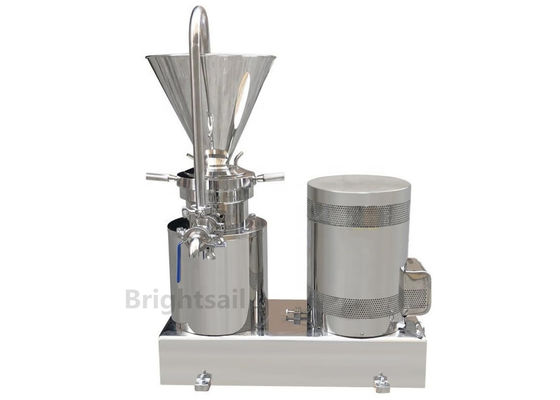

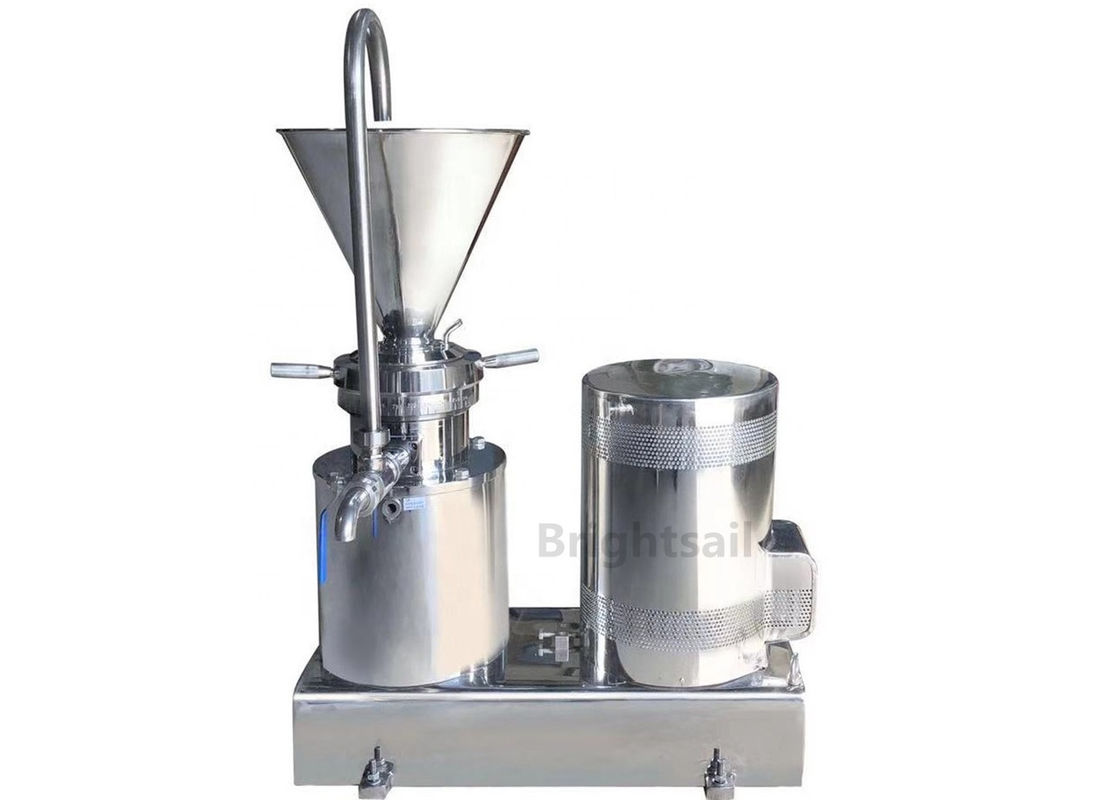

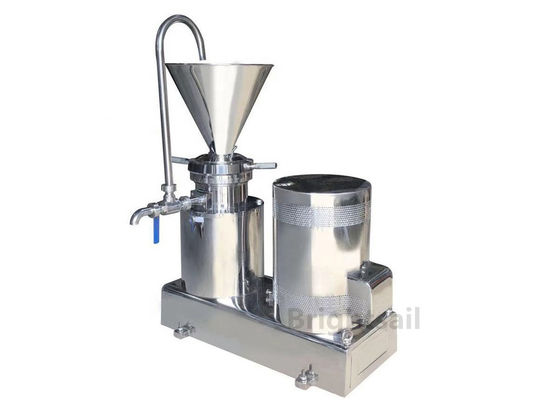

Small Stainless Steel Large Capacity Peanut Butter Making Machine Industrial
Product Introduction:colloid mill
Almond butter maker is a kind of machine for precision machining of fluid materials. The machine has the functions of ultra-fine grinding, dispersing, emulsifying, homogenizing and mixing. The particle size of the processed material can reach 2-50 microns, and the uniformity can reach 90% .
Sesame paste machine is the ideal equipment for ultra-precision processing. Nut Jam machine is suitable for ultra-fine grinding of wet materials (pharmaceutical, food, chemical and other industries) . The utility model has the advantages of crushing, emulsifying, homogenizing, mixing materials, etc. .
Technical Data:colloid mill
| Model | Motor power (kw) |
Motor speed (r/min) |
Processing fineness(um) |
Capacity (t/h) |
Grinding disc diameter(mm) |
Cooling water pipe(mm) |
Outlet (mm) |
Inlet (mm) |
Weight (kg) |
Boundary dimension (L*W*H)(mm) |
| BSQT-F50 | 1.5 | 2900 | 2-40 | 0.01-0.1 | 50 | 10 | 20 | 30 | 60 | 255*500*700 |
| BSQT-F65 | 1.5/2.2 | 2900 | 2-40 | 0.02-0.5 | 65 | 10 | 20 | 30 | 65 | 500*345*675 |
| BSQT-F80 | 3 | 2900 | 2-40 | 0.3-1 | 80 | 12 | 25 | 48 | 150 | 700*570*920 |
| BSQT-F100 | 5.5 | 2900 | 2-40 | 0.5-2 | 100 | 12 | 25 | 66 | 240 | 800*645*900 |
| BSQT-F120 | 7.5 | 2900 | 2-40 | 0.5-3 | 120 | 12 | 32 | 66 | 250 | 800*645*900 |
| BSQT-F140 | 11 | 2900 | 2-40 | 0.5-4 | 140 | 12 | 32 | 66 | 275 | 800*750*1020 |
| BSQT-F200 | 18.5 | 2900 | 2-40 | 1-10 | 200 | 12 | 38 | 100 | 400 | 900*850*1200 |
Features:colloid mill
1. Sanitary food grade stainless steel. Except for the motor part, all contact parts are made of stainless steel, especially the moving and static grinding discs are strengthened, which has good corrosion resistance and wear resistance. In this case, the finished material is pollution-free and safe.
2. The colloid mill has compact design, beautiful appearance, good sealing, stable performance, convenient operation and high production efficiency. It is an ideal equipment for processing fine materials.
3. In the split colloid mill, the motor is separated from the base, with good stability, convenient operation, long service life, avoiding material leakage and motor burnout. It adopts labyrinth seal, which is wear-free, corrosion-resistant and reduces failures. Driven by belt wheels, the transmission ratio can be changed, the speed can be increased, and the material can be broken more finely.
4. The vertical colloid mill solves the problem that the small colloid mill cannot work continuously for a long time due to insufficient power and poor sealing. The motor is 220V, the overall structure is compact, the volume is small, the weight is light, the sealing structure is reliable, and the continuous working time is long. Especially suitable for small businesses and laboratories.
5. Various colloid mills have low vibration, stable operation and no foundation.
How to choose the right colloid mill?colloid mil
lInspection model: the structure type of colloid mill and the diameter of grinding disc (mm) determine the capacity of grinding disc. Detection ability: the ability of colloid mill varies greatly according to the density and viscosity of different materials. Circulation pipe: suitable for low viscosity materials that need to be recycled and crushed, such as soybean milk, mung bean beverage, etc. Rectangular inlet: suitable for high and medium viscosity materials without reflux or grinding, such as peanut sauce, chili sauce, etc.
