Product Details:
|
| Product Name: | Belt Type Metal Detector Machine | Other Name: | Detecting Metal Machine |
|---|---|---|---|
| Application: | Industries Of Chemical,medical,foodstuff | Material: | Stainless Steel |
| Size(mm): | 1330×750×1100(L×W×H) | Weight: | 180kg |
| Function: | Detecting Metal From Raw Materials | ||
| High Light: | ohsas automatic food processing machine,ohsas belt metal detector,foodstuff industry belt metal detector |
||

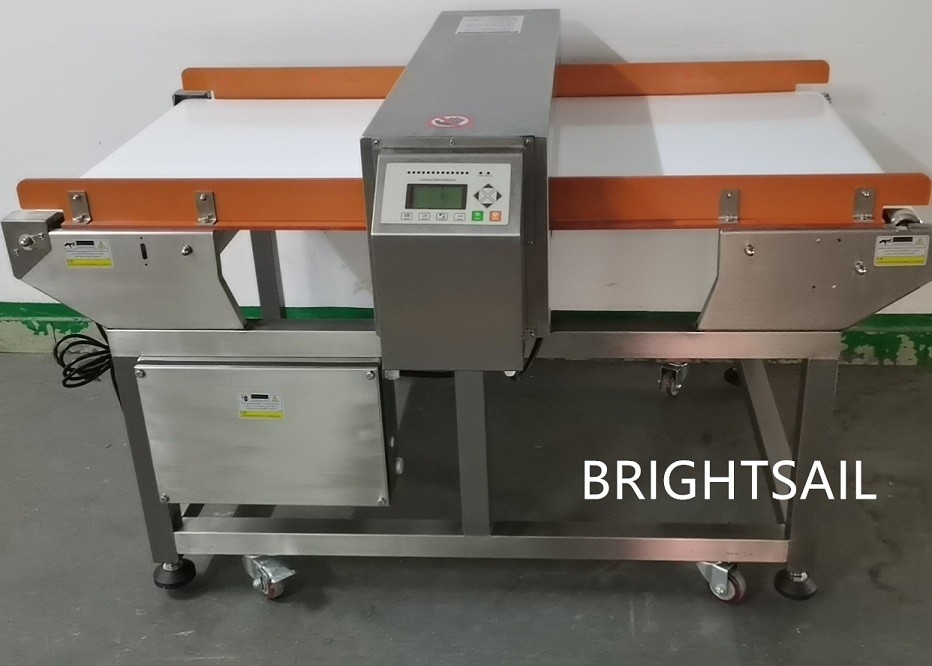

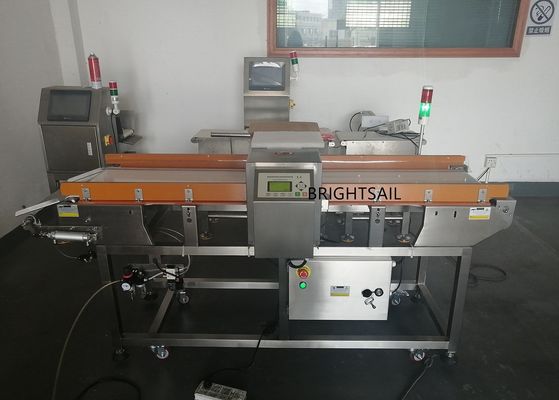

Fully Automatic Foodstuff Industry Belt Type Metal Detector Machine
Technical Data:
| Model | XR-980 | ||||||||
| Type | standard machine | Non-standard machine (special specification) | |||||||
| Detection channel width(mm) | 400 | Non-standard machine (special specification) | |||||||
| Detecting channel height(mm)(≤200) | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 | |
| Calibration detection sensitivity | Iron ball diameter(Φmm) | ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 |
| Diameter of non-ferrous metals such as copper and aluminum(Φmm) | ≥1.2 | ≥1.2 | ≥1.5 | ≥1.5 | ≥2.5 | ≥3.0 | ≥4.0 | ≥4.5 | |
| 304 stainless steel ball diameter(Φmm) | ≥1.2 | ≥1.5 | ≥2.0 | ≥3.0 | ≥3.5 | ≥3.5 | ≥4.0 | ≥4.5 | |
| Type of alarm | Detect metal foreign matter automatically stop running, buzzer alarm or remove | ||||||||
| Material | The whole frame is made of 304 mirror stainless steel | ||||||||
| Size(mm) | 1330×750×1100(L×W×H) | ||||||||
| Weight | About 180KG | ||||||||
| Note: the above sensitivity parameters are the test results of the air machine without environmental interference,the actual application will be slightly different due to the interference of the use environment and the components of the detected object! | |||||||||
Functions And Features:
1. Close technical cooperation with Mettler Toledo, the world's leading weighing and metal detection technology company.
2. The core part adopts advanced digital technology and original imported chips for careful research and development. The interior of the detection coil is formed by one-time potting. It has the characteristics of high detection accuracy, stable performance and strong anti-interference ability.
3. It can carry out multi frequency production according to product characteristics, has the function of product test data storage, can store more than 100 product test data, and has a wide range of applications.
4. Intelligent identification technology is adopted, which has the function of self-learning and memory, can automatically identify and remember the characteristics of products, and effectively eliminate the interference caused by various "product effects".

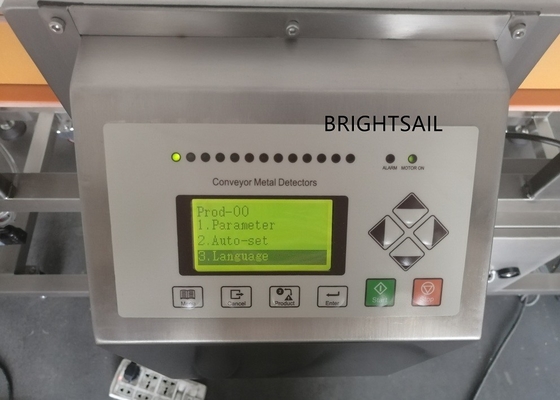

5. The operation interface is simple and friendly. The dialogue LCD screen is adopted, and the parameters can be set quickly and conveniently through the simple key control interface; It can detect a variety of products with different product signals (characteristics). Once set, it can ensure high detection accuracy without readjusting and setting procedures.
6. Meet the requirements of ISO, OHSAS and CE.
7. Shockproof and waterproof design, dustproof and waterproof function, in line with international certification, anti vibration and noise absorption, and can adapt to harsh working environment.
8. Various material retaining devices (such as flaps, blowers, push rods, etc.) and special load-bearing body design of lightweight and large packaging can be adopted according to the needs of users.
Application:
This machine is mainly used to detect the metal impurities and metal foreign matters of food, bread, steamed bread, dumplings, biscuits and other products, as well as the inclusion of metal impurities in the production process of products or raw materials in medicine, toys, clothing, footwear, chemical industry, leather, knitting and other industries. For example, iron and non ferromagnetic metal items (iron, copper, aluminum, stainless steel and other non-ferrous metals can be detected) can improve the product safety factor and product quality.
