Product Details:
|
| Shipping Methods: | Courier Service,Air Transport,Sea Transport...etc | After-sales Service: | Instructing How To Install And Use The Machine; One Year Warranty; Video Support; |
|---|---|---|---|
| Product Name: | Metal Detector For Food Industry | Other Name: | Pharmaceutical Metal Detector |
| Material: | Stainless Steel 304/316 | Warranty: | 1 Year |
| Certification: | CE & ISO | ||
| High Light: | stainless steel food industry metal detector,falling type food industry metal detector,customized stainless steel metal detector |
||

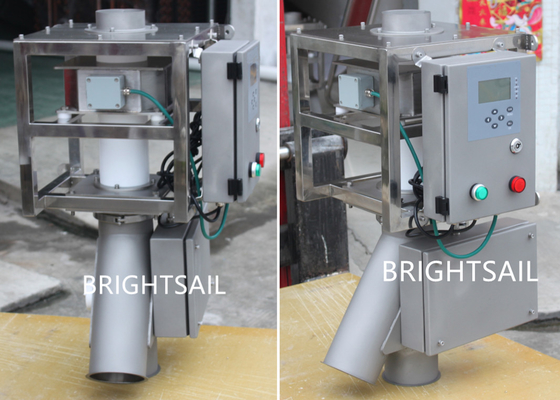

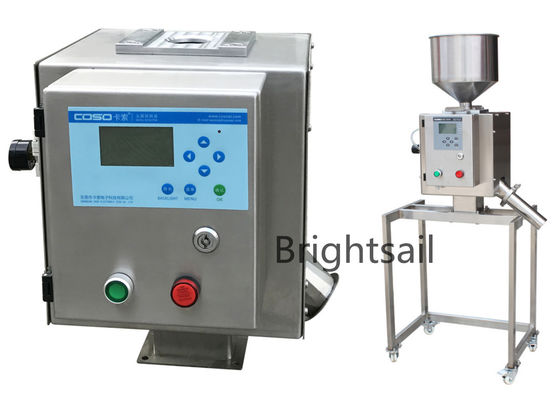

Stainless Steel Customized Falling Type Metal Detector For Food Industry

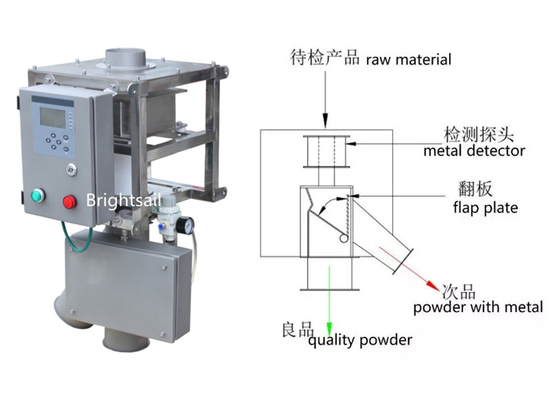

BSXR Series Metal Separators/Free Fall Metal Detectors remove or separate metal particles that may be present in plastic particles (e.g. ferrous, aluminum, brass, copper, stainless steel, etc.) (even if metal particles are encapsulated in the product). Metal separators prevent metal from entering the injection molding machine, reducing damage to molds, thermal nozzles and valves.
Technical Data:
| Model | Feed diameter | Accuracy | Compressed air | Max capacity(L/h) | Raw material temperature |
Unqualified material discharge time |
||
| (Фmm) | FeΦ | SUSΦ | Other Metal | |||||
| BSXR-3500-50B | 50 | 0.3mm | 0.6mm | 0.3~0.6 mm | 3～5Bar | 2000 | < 80℃ | 0.3～5s |
| BSXR-3500-70B | 70 | 0.7mm | 1.0mm | 0.7~1.0 mm | 3～5Bar | 5000 | < 80℃ | 0.3～5s |
| BSXR-3500-100B | 100 | 0.8mm | 1.2mm | 0.8~1.2 mm | 3～5Bar | 12000 | < 80℃ | 0.3～5s |
| BSXR-3500-120B | 120 | 1.2mm | 1.5mm | 1.2~1.5 mm | 3～5Bar | 16000 | < 80℃ | 0.3～5s |
| BSXR-3500-150B | 150 | 1.5mm | 2.0mm | 1.5~2.0 mm | 3～5Bar | 25000 | < 80℃ | 0.3～5s |
| BSXR-3500-200B | 200 | 1.8mm | 2.2mm | 1.8~~2.2 mm | 3～5Bar | 44000 | < 80℃ | 0.3～5s |
| BSXR-3500-250B | 250 | 2.5mm | 3.8mm | 2.5~~3.8 mm | 3～5Bar | 50000 | < 80℃ | 0.3～5s |
Features:
1. Set detection coil, controller, separation device in one. Simple operation and easy installation.
2. It can save on the loss of materials because the reject plate quickly rejects unqualified materials.
3. Low installation height, easy to integrity;
4. Test material properties: dry, good fluidity, no long fiber, no conductivity;
5. Test material temperature: ≤80 °C; If it exceeds 80, special components can be selected.
6. The controller can be installed at a distance of about 10 meters from the inspection point.
7. Mainly used for the detection of (8mm) loose granular materials. These materials fall into the detection coil under gravity.
8. This machine is suitable for plastics, food, chemical and other industries.
Advantages:
1. The housing material is SUS304 and the parts in direct contact with the product.
2. High sensitivity to all metals; Effective vibration and sound insulation, special structural design;
3. A variety of calibers can be selected to meet various practical applications.
4. Avoid mold due to product backlog and blockage.
5. Simple operation, space saving, compact structure, quick installation.
6. Patented metal separator, even if you handle a large number of abrasive materials (dust) can ensure safety, repeatable operation.
