Product Details:
|
| Product Name: | Food Metal Detector | Other Name: | Pharma Metal Detector |
|---|---|---|---|
| Application: | Foodstuff Industry | Material: | Stainless Steel 304/316 |
| Model: | Customized | Weight: | 180kg |
| Function: | Detecting Metal From Raw Materials | ||
| High Light: | stainless 316 conveyor belt metal detector,shock resistance conveyor belt metal detector,sus316 metal detector for food industry |
||

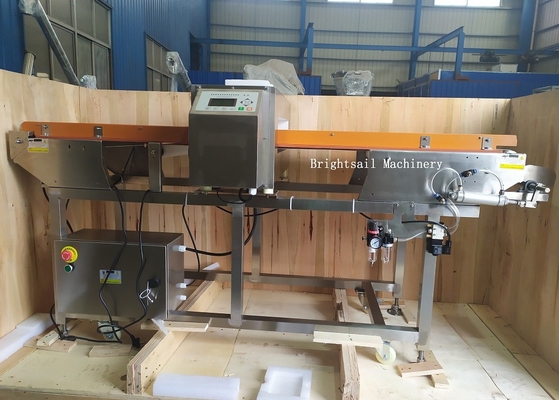

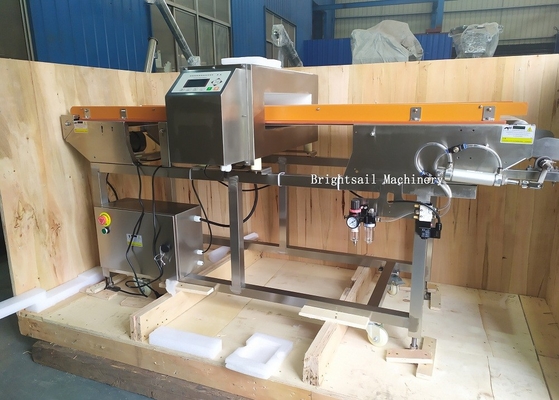

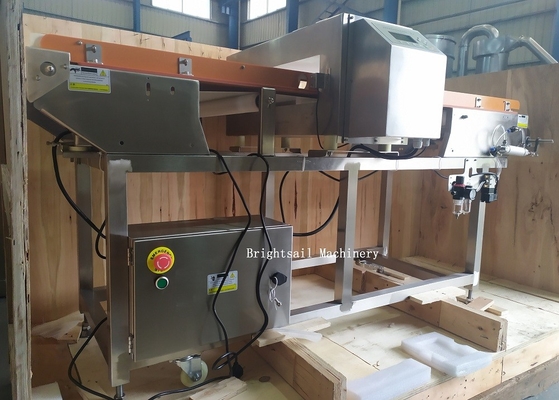

Stainless Steel Customized Conveyor Belt Metal Detector
Technical Data:
| Model | XR-980 | ||||||||
| Type | standard machine | Non-standard machine (special specification) | |||||||
| Detection channel width(mm) | 400 | Non-standard machine (special specification) | |||||||
| Detecting channel height(mm)(≤200) | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 | |
| Calibration detection sensitivity | Iron ball diameter(Φmm) | ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 |
| Diameter of non-ferrous metals such as copper and aluminum(Φmm) | ≥1.2 | ≥1.2 | ≥1.5 | ≥1.5 | ≥2.5 | ≥3.0 | ≥4.0 | ≥4.5 | |
| 304 stainless steel ball diameter(Φmm) | ≥1.2 | ≥1.5 | ≥2.0 | ≥3.0 | ≥3.5 | ≥3.5 | ≥4.0 | ≥4.5 | |
| Type of alarm | Detect metal foreign matter automatically stop running, buzzer alarm or remove | ||||||||
| Material | The whole frame is made of 304 mirror stainless steel | ||||||||
| Size(mm) | 1330×750×1100(L×W×H) | ||||||||
| Weight | About 180KG | ||||||||
| Note: the above sensitivity parameters are the test results of the air machine without environmental interference,the actual application will be slightly different due to the interference of the use environment and the components of the detected object! | |||||||||
Features:
1) It is made of 304 stainless steel, durable and beautiful. The conveyor and tray components are made of American Standard White non-toxic materials.
3) It adopts the combination technology of dual signal and detection circuit, liquid crystal display and Chinese and English menu, which is easy to operate.
4) Using German professional testing technology, balance principle, more reliable and better performance.
5) DSP and MCU combine the detection signal for data acquisition and data processing to improve the detection results.
6) New circuit design, high sensitivity and mature phase adjustment technology can automatically adjust the product and effectively inhibit the product effect.
7) Able to detect iron, stainless steel, copper, aluminum and other non-ferrous metals and other materials.
8) It has the function of automatic recognition and learning, effectively overcomes the influence of product materials, has strong anti-interference and good shockproof.
9) Support 24-hour uninterrupted work.
10) It has good waterproof ability and is suitable for harsh working environments such as high temperature, low temperature, humidity, dryness, dust and condensation.
Application:
This belt typr metal separator is mainly used to detect metal impurities and metal impurities in food, bread, steamed bread, dumplings, biscuits and other products, and Pharmaceutical, toy, clothing, footwear, chemical, leather and other products or production process of raw materials metal impurities, knitting and other industries. For example, Ferrous and non-ferromagnetic metal projects (which can detect iron, copper, aluminum, stainless steel and other Non-ferrous metal) can improve product Factor of safety and product quality.
Packing And Shipping:
1.We provide shipping methods:Courier service,Air transport,Sea Transport
2.Can accept order:Full container cargo load,Less container load
3.Delivery term :EXW,FOB,CIF,CNF etc.
We always choose the most economical and reliable shipping company to make sure you receive the goods in time. The BL and tracking number will be provided to you once the consignment is shipped.
How Can I Buy This Machine?
First of all, discuss all machines details and price with our sales person.
Secondly, confirm the price and payment terms Trade assurance/TT/Escrow/Western Union etc.
Thridy, send us purchased order and confirm our Proforma Invoice and arrange deposit. Once well received the deposit, we will arrange production.
At last, please arrange balance payment for us once machine is ready, then we will arrange shipment booking after received the balance payment and shipping the machine to you.
First of all, discuss all machines details and price with our sales person.
Secondly, confirm the price and payment terms Trade assurance/TT/Escrow/Western Union etc.
Thridy, send us purchased order and confirm our Proforma Invoice and arrange deposit. Once well received the deposit, we will arrange production.
At last, please arrange balance payment for us once machine is ready, then we will arrange shipment booking after received the balance payment and shipping the machine to you.
