Product Details:
|
| Product Name: | Food Metal Separator | Other Name: | Metal Detector For Herb |
|---|---|---|---|
| Application: | Food,medicine,and Other Medical Materials | Material: | Customized |
| Eliminate Content: | SUS,Fe And Other Materials | Weight: | 180kg |
| Function: | Detecting Metal From Raw Materials | Warranty: | 1 Year |
| High Light: | anti interference metal detection for food,ss304 metal detection for food,ce metal detector for food industry |
||

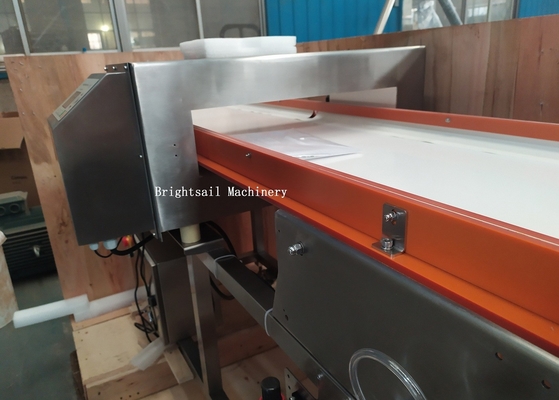

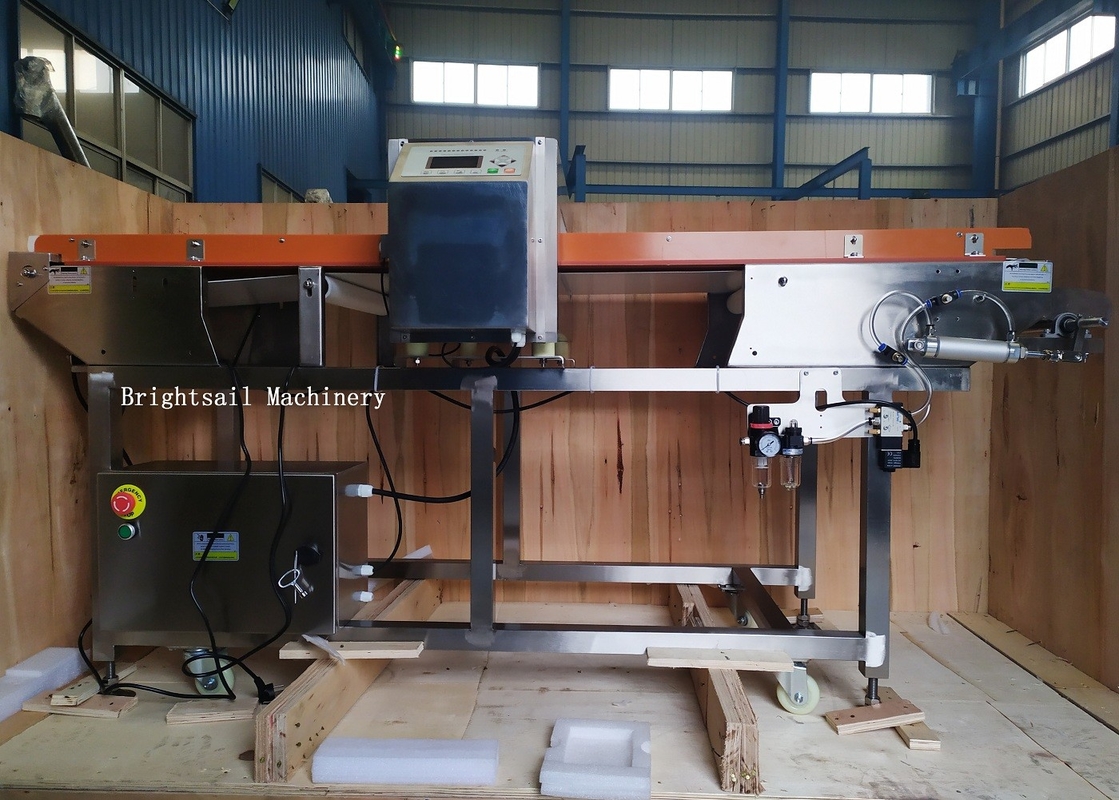

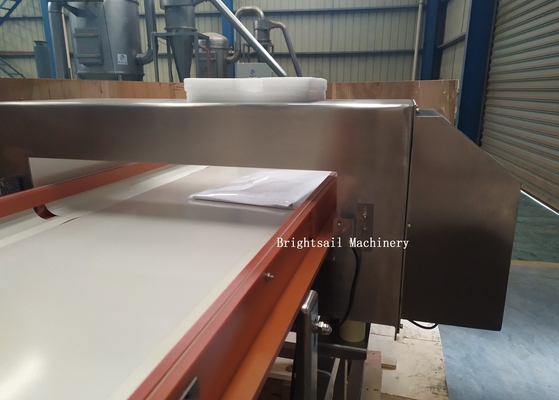

Customized Suitable For Detecting Stainless Steel And Fe Industry Food Metal Separator
The belt type metal separator is mainly used to detect metal impurities in food, bread, steamed bread, dumplings, biscuits and other products, as well as pharmaceutical, toy, clothing, footwear, chemical, leather and other products or raw material metal impurities, knitting and other industries in the production process. For example, ferrous and non ferromagnetic metal projects (which can detect non-ferrous metals such as iron, copper, aluminum and stainless steel) can improve the safety factor and product quality of products.
Technical Data:
| Model | XR-980 | ||||||||
| Type | standard machine | Non-standard machine (special specification) | |||||||
| Detection channel width(mm) | 400 | Non-standard machine (special specification) | |||||||
| Detecting channel height(mm)(≤200) | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 | |
| Calibration detection sensitivity | ron ball diameter(Φmm) | ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 |
| Diameter of non-ferrous metals such as copper and aluminum(Φmm) | ≥1.2 | ≥1.2 | ≥1.5 | ≥1.5 | ≥2.5 | ≥3.0 | ≥4.0 | ≥4.5 | |
| 304 stainless steel ball diameter(Φmm) | ≥1.2 | ≥1.5 | ≥2.0 | ≥3.0 | ≥3.5 | ≥3.5 | ≥4.0 | ≥4.5 | |
| Type of alarm | Detect metal foreign matter automatically stop running, buzzer alarm or remove | ||||||||
| Material | The whole frame is made of 304 mirror stainless steel | ||||||||
| Size(mm) | 1330×750×1100(L×W×H) | ||||||||
| Weight | About 180KG | ||||||||
| Note: the above sensitivity parameters are the test results of the air machine without environmental interference,the actual application will be slightly different due to the interference of the use environment and the components of the detected object! | |||||||||
Features:
1. made of 304 stainless steel, strong and durable, beautiful and generous.
2. Conveyor and Pallet parts are made of American Standard White non-toxic material.
3. double signal detection circuit, LCD display, Chinese and English menu, easy to operate.
4. using German professional testing technology, balance principle, more reliable, better performance.
5. DSP and MCU combine the signal to collect and process data, improve the result of detection.
6. new circuit design, high sensitivity, mature phase adjustment technology, can automatically adjust the product, effectively inhibit the product effect.
7. ability to detect iron, stainless steel, copper, aluminum, Non-ferrous metal, and other materials.
8. with automatic identification and learning functions, effectively overcome the impact of product materials, strong anti-interference, good shock resistance.
9. Support 24 hours a day.
10. waterproof, suitable for high temperature, low temperature, humidity, dry, dust, condensation and other harsh working environment.
About Us:
It's professional and engaged in research, development, production,sale and service of grinder machine,mixer,sifting machine,overall powder solution,welding service,welding machine, and metal processing,and chemical powder.
Since its foundation, Brightsail has always adhered with the principle of quality firstly and technology is life. Recently, the two companies own more than 50 employees, about 400m2 of office space, cover about 340m2 of manufacturing space. With customer centric idea as base,it takes evey detail seriouly in the process of production to assure high performance and quality of each part and equipment as well as the stable operation in more than 50 nations around the world.
