Product Details:
|
| Product Name: | Date Palm Fitz Mill Hammer Mill Powder Making Pulverizer Machine | Warranty: | One Year |
|---|---|---|---|
| Capacity: | 10-500 Kg/h | Fineness: | 12-120 Mesh |
| Voltage: | Customized | Package: | Wooden Case |

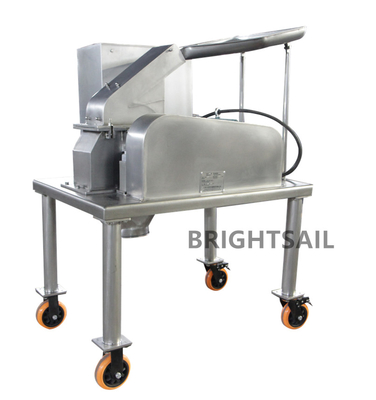

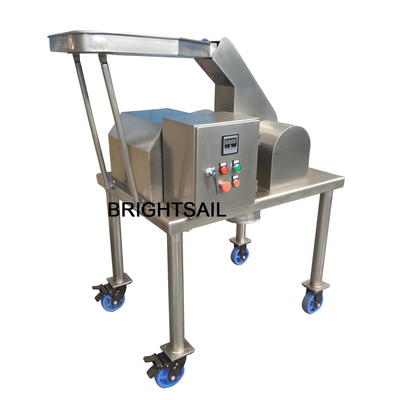

Brightsail hammer mill a pharmaceutical fizt mill for raw material hammering and grinding machine in pharmaceutical industry
The BSF series pharmaceutical fizt mill is a very popular model. It is widely used in the pharmaceutical industry and is suitable for grinding herbs, raw materials, etc. It is not only a device, but also a strategic partner for ensuring the safety, efficiency and compliance of drugs.
Methods of work:

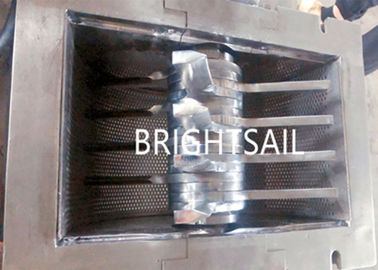

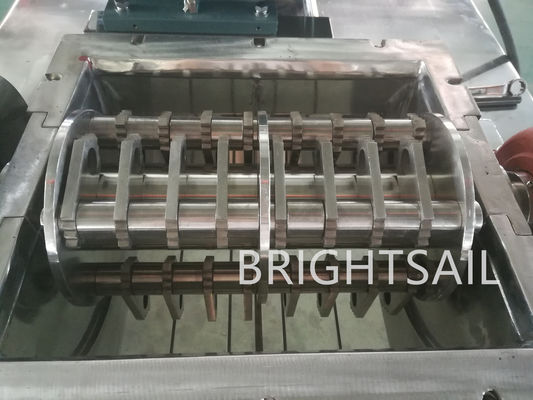

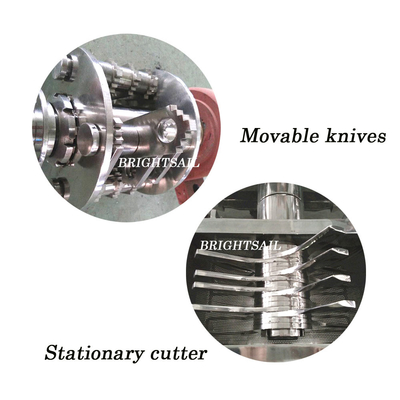

The machine runs at high speed. The target material is crushed by the cutting and grinding of the high-speed knife. There is a screen in the grinding chamber. If the particle is smaller than the aperture of the screen, it will pass through the screen and leave the grinding chamber by centrifugal force. If not, the particles will continue to be comminuted in the grinding chamber.Special attention, if you need to achieve large capacity or continuous dust-free production, then the BS hammer unit will be a good choice.
Key features:
1. Easy to clean the crushing chamber.
2. All parts in contact with the material are made of stainless steel, acid and corrosion resistance, so that the broken material meets the sanitary requirements.
3. Smooth operation, easy to move, low noise.
4. Good crushing effect and low power consumption.
This is the test video of pharmaceutical fitz mill
Our company:
Brightsail Machinery is a professional manufacturer focusing on pharmaceutical equipment since 2002.After long-term development, our company has become one of the most popular suppliers in our industry. We have sold our machines to more than 85 countries and won a good reputation from our customers. If you have any intertest for our products, please do not hesitate to contact us, we are very willing to help you find the most suitable machine.
Drawings:
technical data:
| Model | BSF-16 | BSF-32 |
| Mapacity (kg/h) | 50-300 | 100-400 |
| Output size (MeSH) | 12-120 | |
| Grind motor (KW) | 7.5 | 11 |
| Speed change (RPM) | 1000-2400-4400 | 1000-2400-4400 |
| Overall dimension (L * W * H)(mm) | 1100*860*1600 | 1280*950*1600 |
| Weight (kg) | 250 | 320 |
If you are interested in such pharmacetical Fitz Mill, please let me know:
1)the required output size
2)How much powder do you need to grind per hour
3)the working voltage of your factory
