Product Details:
|
| Product Name: | Date Palm Fitz Mill Hammer Mill Powder Making Pulverizer Machine | Warranty: | One Year |
|---|---|---|---|
| Capacity: | 10-500 Kg/h | Fineness: | 12-120 Mesh |
| Voltage: | Customized | Package: | Wooden Case |

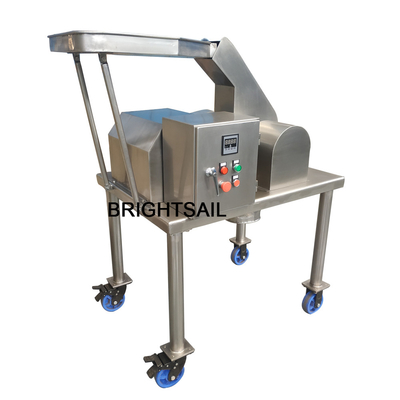

Pharmaceutical sorghum leaf sheath fitz mill grinding equipment, pharmaceutical sorghum leaf sheath hammer mill from Brightsail
our BSF high-efficiency hammer mill is widely used in pharmaceutical, chemical and food industries for the grinding of dry and fragile materials. Materials with low softening point and high viscosity are not suitable for this machine.
There is a screen/sieve in the mill chamber. If you want to make different kinds of powder particle sizes, you only need to replace the screen.
Methods of work:
the machine runs at high speed. The target material is crushed by the cutting and grinding of the high-speed knife. There is a screen in the grinding chamber. If the particle is smaller than the aperture of the screen, it will pass through the screen and leave the grinding chamber by centrifugal force. If not, the particles will continue to be comminuted in the grinding chamber.Special attention, if you need to achieve large capacity or continuous dust-free production, then the BS hammer unit will be a good choice.
Key features:
1. Simple structure, easy to assemble and clean the crushing chamber.
2. All parts in contact with the material are made of stainless steel, acid and corrosion resistance, so that the broken material meets the sanitary requirements.
3. Smooth operation, easy to move, low noise.
4. Good crushing effect and low power consumption.
This is a picture of Sorghum leaf sheath crushed by pharmaceutical fitz mill, which can be made into capsules later.
This is the test video of pharmaceutical fitz mill
Our company:
Brightsail Machinery is a professional manufacturer focusing on pharmaceutical equipment since 2002. After 15 years of development, our company has become one of the most popular suppliers in our industry. We have sold our machines to more than 50 countries and won a good reputation from our customers. If you have any intertest for our products, please do not hesitate to contact us, we are very willing to help you find the most suitable machine.
Drawings:
technical data:
| Model | BSF-16 | BSF-32 |
| Mapacity (kg/h) | 50-300 | 100-400 |
| Output size (MeSH) | 12-120 | |
| Grind motor (KW) | 7.5 | 11 |
| Speed change (RPM) | 1000-2400-4400 | 1000-2400-4400 |
| Overall dimension (L * W * H)(mm) | 1100*860*1600 | 1280*950*1600 |
| Weight (kg) | 250 | 320 |
