Product Details:
|
| Product Name: | Bottle Labeler Labeling Machine | Other Name: | Semi Auto Bottle Labeling Machine |
|---|---|---|---|
| Material Size: | External Diameter φ 20- φ 100 Mm；high 30-200 Mm200mm | Applicable Label Inner Diameter: | φ76mm |
| Applicable Label Roll Outer Diameter: | Maximum Φ 250mm | Application: | Round Bottle |
| Overall Dimensions: | (L)650 (W)350 (H)550mm | ||
| High Light: | 250mm wine bottle labelling machine,semi automatic wine bottle labelling machine,Modular Wine Bottle Labelling Machine |
||
±0.5mm Labeling Accuracy 10 To 40 Pieces Per Min Bottle Labeler Labeling Machine

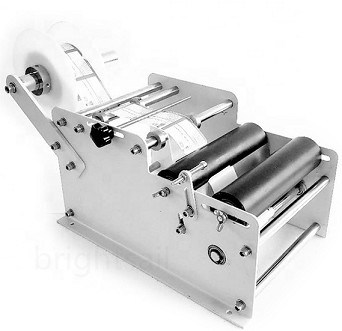

Introduction:Bottle Labeler Labeling Machine
The labeling machine is a table type semi-automatic machine with motor and touching control by limit switch and with small volume, which can be suitable for matching with the vertical filling packing machine and used for printing the date of production and batch in the industries of food, beverage, medicine etc. This machine adopts hot stamp ribbon instead of liquid ink. It can print clear words on any packing materials with the features of simple operation and convenient maintenance.
The round bottle labeler machine is especially suitable for the industries of food and medicine: adopt hot stamp ribbon avoiding the anxiety of ink contamination, keeping hand and machine clean and tidy.
Application:Bottle Labeler Labeling Machine
1.Suitable for all kinds of cylindrical objects labeling, small taper round bottle labeling, such as xylitol, cosmetics round bottles, wine bottles and so on. Can achieve full week / half weeks labeling, front and back labeling circumference is back standard spacing can be adjusted. Widely used in food, cosmetics, chemical, pharmaceutical and other industries.
Technical Data:Bottle Labeler Labeling Machine
|
Model/Technical Parameters
|
XT-50
|
|
Labeling speed
|
10-40 pieces / min (related to material and label size)
|
|
Labeling accuracy
|
±0.5mm(excluding material and label size)
|
|
Material size
|
external diameter φ 20- φ 100 mm；
high 30-200 mm200mm
|
|
Applicable label inner diameter
|
φ76mm
|
|
Applicable label roll outer diameter
|
maximum Φ 250mm
|
|
Using electricity
|
AC220V 50Hz/60Hz 120W
|
|
Overall dimensions
|
(L)650 (W)350 (H)550mm
|
Features:Bottle Labeler Labeling Machine
1.Suitable for labeling round bottle in different sizes.
2.Efficiency can reach 10-40 times per minute.
3.The position of the bottle can be adjustable.
4.Labeling effect is perfect, no creases, no bubble, grade high to increase product competitiveness
5.Made of brand sensor and other electronic components, performance is more stable.
6.Modular design, convenient maintenance and repair costs low.
7.High accuracy and high speed, dispensing & labeling automatically, very easy to operate.
