Product Details:
|
| Product Name: | Automatic Labeling Machine For Bottle | Other Name: | Semi Automatic Flat Bottle Labeling Machine |
|---|---|---|---|
| Material Size: | External Diameter φ 20- φ 100 Mm；high 30-200 Mm200mm | Applicable Label Inner Diameter: | φ76mm |
| Applicable Label Roll Outer Diameter: | Maximum Φ 250mm | Advantage: | Easy To Use |
| Overall Dimensions: | (L)650 (W)350 (H)550mm | Another Name: | Bottle Labeling Machine Automatic |
| High Light: | 30mm automatic labeling machine,automatic labeling machine 120w,automatic tabletop bottle labeling machine |
||

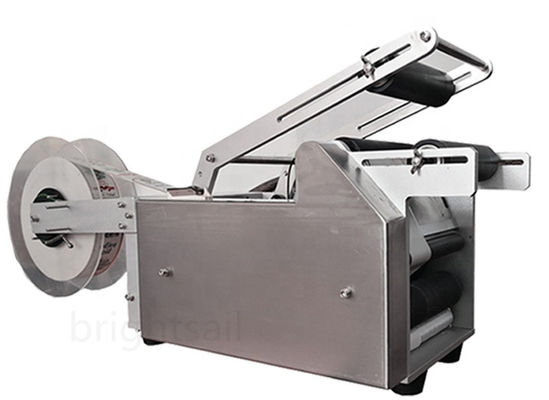

±0.5mm Labeling Accuracy 10 To 40 Pieces Per Min Automatic Labeling Machine For Bottle
Introduction:automatic labeling machine for bottle
This semi automatic flat bottle labeling machine is a tabular semi-automatic machine with motor and touch control via limit switches and small size, suitable for matching with vertical filling and packaging machines and for printing production dates and batches of industrial foods, beverages, pharmaceuticals, etc. .
This bottle labeling machine automatic adopts hot stamp ribbon instead of liquid ink. It can print clear text on any packing material, easy to operate and maintain. Round bottle labeling machine is especially suitable for food, medicine and other industries: Using hot printing ribbon to avoid the trouble of ink pollution, keep hands and machines clean and tidy.
Application:automatic labeling machine for bottle
1. Bottle label machine self-adhesive label for all kinds of cylindrical objects, small taper round bottle label, such as Xylitol, cosmetics round bottle, wine bottle, etc. . Can achieve full week/half week labeling, before and after labeling the perimeter is adjustable back standard spacing. Widely used in food, cosmetics, chemical, pharmaceutical and other industries.
2. It can be equipped with the circumferential positioning detection device to realize the labeling of circumferential positioning.
3. Optional tape printers and inkjet printer can print production batch labeling and other information while reducing the packaging process, improve production efficiency.
Technical Data:automatic labeling machine for bottle
|
Model/Technical Parameters
|
XT-50
|
|
Labeling speed
|
10-40 pieces / min (related to material and label size)
|
|
Labeling accuracy
|
±0.5mm(excluding material and label size)
|
|
Material size
|
external diameter φ 20- φ 100 mm；
high 30-200 mm200mm
|
|
Applicable label inner diameter
|
φ76mm
|
|
Applicable label roll outer diameter
|
maximum Φ 250mm
|
|
Using electricity
|
AC220V 50Hz/60Hz 120W
|
|
Overall dimensions
|
(L)650 (W)350 (H)550mm
|
Features:automatic labeling machine for bottle
1. It is suitable for labeling round bottles of different sizes.
2. The efficiency can reach 10-40 times / min.
3. The position of the bottle can be adjusted.
4. Perfect labeling effect, no crease, no bubble, high grade, increase product competitiveness
5. Using brand sensors and other electronic components, the performance is more stable.
6. Modular design, convenient maintenance and low maintenance cost.
7. High precision, high speed, dispensing; Automatic labeling, easy to operate.
