Product Details:
|
| Product Name: | Square Bottle Labeling Machine | Other Name: | Labeling Machines |
|---|---|---|---|
| Application: | Adhesive Label, Film, Electronic Supervision Code, Bar Code | Material Frame Siz: | （L）30-300 （W）30-150 （H）30-350mm |
| Applicable Inside Size Of Label Roll: | φ76mm | Applicable Outside Diameter Of Label Roll: | MaximumΦ250mm |
| Electrification: | AC220V 50Hz/60Hz 120W | Working Air Pressure: | 0.4-0.6Mpa |
| Highlight: | semi automatic square bottle labelling machine,50times / per square bottle labelling machine,semi automatic square bottle labeling machine |
||

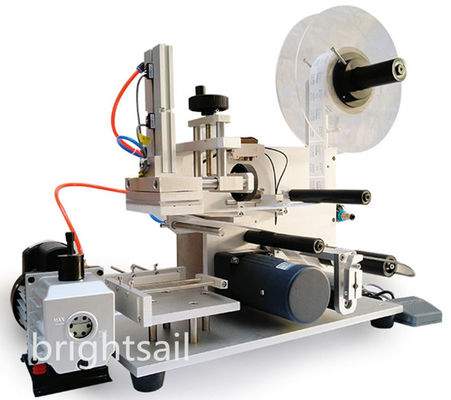

10 To 50 Times Per Min ±0.5mm Label Accuracy Square Bottle Labeling Machine
Product Introduction:square bottle labeling machine
This sticker labeling machine is used for labeling special products for bags/square bottles. It is suitable for various specifications of bottles and caps with self-adhesive labels. It has the characteristics of simple operation, high precision and accurate labeling.
|
Model
|
XY-G-50A
|
|
Labeling speed:
|
10-50 times /min(Relates to material and label size)
|
|
Label accuracy:
|
±0.5mm(Regardless of material and label size)
|
|
Label Size:
|
(L)20-130mm (H)20-120mm
|
|
Material frame siz:
|
(L)30-300 (W)30-150 (H)30-350mm
|
|
Applicable inside size of label roll:
|
φ76mm
|
|
Applicable outside diameter of label roll:
|
maximumΦ250mm
|
|
Electrification:
|
AC220V 50Hz/60Hz 120W
|
|
Working air pressure:
|
0.4-0.6Mpa
|
Scope Of Application:square bottle labeling machine
◆ Applicable label: adhesive label, film, electronic supervision code, bar code, etc.
◆ Application industry: Widely used in cosmetics, food, toys, daily chemical, electronics, medicine and other industries;
Application examples: shampoo flat bottle labeling, packaging box labeling, bottle cap, plastic shell labeling, etc. (Can't have
radians)
Another type of labeling machine for round bottle:
(click on the picture to learn more about it)
