Product Details:
|
| Product Name: | Labeling Machine Flat Surface | Other Name: | Semi Automatic Labeling Machine |
|---|---|---|---|
| Application: | Adhesive Label, Film, Electronic Supervision Code, Bar Code | Warranty: | 1year |
| Applicable Inside Size Of Label Roll: | φ76mm | Applicable Outside Diameter Of Label Roll: | MaximumΦ250mm |
| Labeling Speed: | 10-50 Times /min(Relates To Material And Label Size) | Working Air Pressure: | 0.4-0.6Mpa |
| High Light: | 0.6Mpa Automatic Labeling Machine,10times / min Automatic Labeling Machine,ce automated sticker labelling machine |
||
10 To 50 Times Per Min ±0.5mm Label Accuracy Labeling Machine Flat Surface

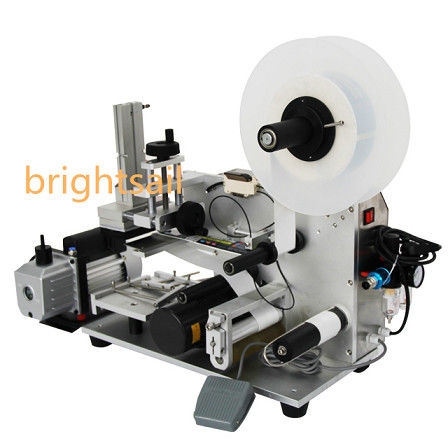

Product Introduction:labeling machine flat surface
The labeling machine square bottle is suitable for labeling special products such as bags/square bottles. It is suitable for all kinds of bottle caps with self-adhesive labels. It has the characteristics of simple operation, high precision and accurate labeling.
|
Model
|
XY-G-50A
|
|
Labeling speed:
|
10-50 times /min(Relates to material and label size)
|
|
Label accuracy:
|
±0.5mm(Regardless of material and label size)
|
|
Label Size:
|
(L)20-130mm (H)20-120mm
|
|
Material frame siz:
|
(L)30-300 (W)30-150 (H)30-350mm
|
|
Applicable inside size of label roll:
|
φ76mm
|
|
Applicable outside diameter of label roll:
|
maximumΦ250mm
|
|
Electrification:
|
AC220V 50Hz/60Hz 120W
|
|
Working air pressure:
|
0.4-0.6Mpa
|
1. This flat bottle labeling machine is specially used for labeling special-shaped products. It is suitable for all kinds of bottle caps and has a wide range of applications.
2. The mould specially made for customers is more convenient to use.
3. Label peeling distance, automatic length calculation, photoelectric, microcomputer. Easy to use, no need to adjust the photoelectric position.
4. Pedal the emergency stop switch to ensure the safe and stable operation of production.
5. Easy to operate, anyone can easily and quickly operate and use the equipment.
Scope Of Application:labeling machine flat surface
Applicable labels: self-adhesive labels, film, Electronic Monitoring Code, Bar Code, etc. .
Application Industry: widely used in cosmetics, food, toys, daily chemical, electronics, medicine and other industries;
Application examples: Shampoo level bottle labeling, packaging box labeling, cap, plastic shell labeling, etc. (no radian)
Another type of labeling machine for round bottle:
(click on the picture to learn more about it)
