Product Details:
|
| Product Name: | Labeling Machine Round Bottle | Other Name: | Flat Bottle Labeling Machine |
|---|---|---|---|
| Labeling Speed: | 10-40 Pieces / Min (related To Material And Label Size) | Material Size: | External Diameter φ 20- φ 100 Mm；high 30-200 Mm200mm |
| Applicable Label Inner Diameter: | φ76mm | Applicable Label Roll Outer Diameter: | Maximum Φ 250mm |
| Using Electricity: | AC220V 50Hz/60Hz 120W | ||
| High Light: | 120w Round Bottle Label Machine,20MM Round Bottle Label Machine,PET auto label applicator |
||
±0.5mm Labeling Accuracy 10-40 Pieces Per Min Labeling Machine Round Bottle

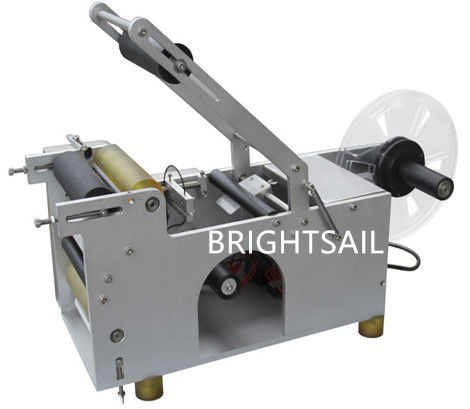

Introduction:Labeling Machine Round Bottle
This label machine for small bottles suitable for different size of adhesive label or adhesive film on all kinds of round bottle,Round tank,Round barrel to self-adhesive labeling,High accuracy and high speed.It is used in PET bottle,Plastic bottle,Glass bottle,Metal bottle and son round bottle etc.
Application:Labeling Machine Round Bottle
1. Self-adhesive labeling of round bottles, round cans, cylinders, etc.
2. Suitable for labeling round bottles such as PET bottles, plastic bottles, glass bottles, metal bottles, etc.
3. Widely used in cosmetics, beverages, food, medicine and other industries, greatly improving productivity and labeling quality
Technical Data:Labeling Machine Round Bottle
|
Model/Technical Parameters
|
XT-50
|
|
Labeling speed
|
10-40 pieces / min (related to material and label size)
|
|
Labeling accuracy
|
±0.5mm(excluding material and label size)
|
|
Material size
|
external diameter φ 20- φ 100 mm；high 30-200 mm200mm
|
|
Applicable label inner diameter
|
φ76mm
|
|
Applicable label roll outer diameter
|
maximum Φ 250mm
|
|
Using electricity
|
AC220V 50Hz/60Hz 120W
|
|
Overall dimensions
|
(L)650 (W)350 (H)550mm
|
Features:Labeling Machine Round Bottle
1. Desktop design, simplified structure, small appearance, powerful function.
2. Using anodized aluminum alloy bracket and advanced computer white electric box, beautiful and generous.
3. Adopt advanced electric eye, object and label detection sensitivity is high.
4. A wide range of applications, which can meet the labeling of cylinders with a diameter of 20-100mm.
5. The labeling accuracy is high, and the deviation of the label head and tail joints is ≤±0.5mm.
6. Adopt ingenious extrusion device to load materials, only need to put the workpiece, and automatically complete the labeling.
7. Adopting card position adjustment, easy to switch labeling of different workpieces.
8. The synchronous belt is used for traction, and the mechanical stability is greatly improved.
