40 Pieces Per Min CE Automatic Round Bottle Labeling Machine

Certification
China Jiangyin Brightsail Machinery Co.,Ltd. certification
China Jiangyin Brightsail Machinery Co.,Ltd. certification
Customer Reviews
Brightsail Machinery is a very good company,we have purchased their products for two times at present,their machines are very good and work well in our factory.Don't hesitate to contact them and make an order.

—— Medifoods Group

We purchased two processing line from Brightsail Machinery for making chickpea and spice powder,all of machines are working well in our factory.They are such a good supplier and a good choice for you to purchase the machines.

—— Imtiaz

I'm Online Chat Now

40 Pieces Per Min CE Automatic Round Bottle Labeling Machine

40 Pieces Per Min CE Automatic Round Bottle Labeling Machine
40 Pieces Per Min CE Automatic Round Bottle Labeling Machine 40 Pieces Per Min CE Automatic Round Bottle Labeling Machine 40 Pieces Per Min CE Automatic Round Bottle Labeling Machine

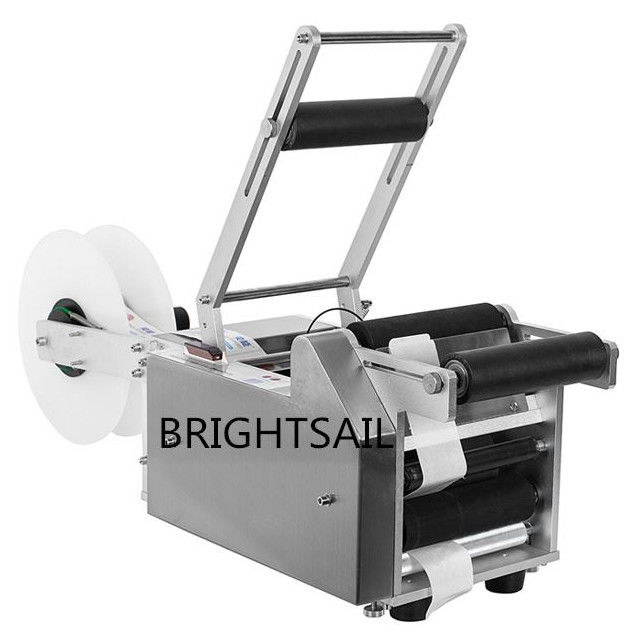

Large Image :  40 Pieces Per Min CE Automatic Round Bottle Labeling Machine

Product Details:
Place of Origin: China
Brand Name: Brightsail
Certification: CE ISO
Model Number: XT-50
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Wooden case or container
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets per month

40 Pieces Per Min CE Automatic Round Bottle Labeling Machine

Description
Product Name: Automatic Round Bottle Labeling Machine Other Name: Water Bottle Labeling Machine
Material Size: External Diameter φ 20- φ 100 Mm;high 30-200 Mm200mm Applicable Label Inner Diameter: φ76mm
Applicable Label Roll Outer Diameter: Maximum Φ 250mm Application: Round Bottle
High Light:

CE Automatic Round Bottle Labeling Machine

,

iso Automatic Round Bottle Labeling Machine

,

simplified automatic round bottle labeling machine

10 To 40 Pieces Per Min ±0.5mm Labeling Accuracy Automatic Round Bottle Labeling Machine



Introduction:Automatic Round Bottle Labeling Machine

This labeling machine flat bottle​ is suitable for different sizes of self-adhesive labels or self-adhesive film pasted on various round bottles, cans and barrels for self-adhesive labeling, with high precision and fast speed. Suitable for PET bottle, plastic bottle, glass bottle, metal bottle, round bottle, etc.



Application:Automatic Round Bottle Labeling Machine

1. Round bottle, round pot, cylinder and other self-adhesive label.

2. Applicable to PET bottles, plastic bottles, glass bottles, metal bottles and other round bottle labeling.

3. Widely used in cosmetics, beverages, food, medicine and other industries, greatly improving the production efficiency and labeling quality



Technical Data:Automatic Round Bottle Labeling Machine

Model/Technical Parameters
XT-50
Labeling speed
10-40 pieces / min (related to material and label size)
Labeling accuracy
±0.5mm(excluding material and label size)
Material size
external diameter φ 20- φ 100 mm;
high 30-200 mm200mm
Applicable label inner diameter
φ76mm
Applicable label roll outer diameter
maximum Φ 250mm
Using electricity
AC220V 50Hz/60Hz 120W
Overall dimensions
(L)650 (W)350 (H)550mm



Features:Automatic Round Bottle Labeling Machine

1. Desktop design, simplified structure, compact appearance and powerful functions.

2. Using anodized aluminum alloy bracket and advanced computer white electric box, beautiful and generous.

3. It adopts advanced electric eye, which has high detection sensitivity for objects and tags.

4. It has a wide range of applications and can be used for labeling cylinders with a diameter of 20-100mm.

5. The labeling accuracy is high, and the deviation of the label head and tail joints is 0.5mm.

6. Adopt ingenious extrusion device to load materials, only need to place the workpiece, and automatically complete the labeling.

7. Adopt the card position adjustment, which is convenient to switch the labeling of different workpieces.

8. It adopts synchronous belt traction, which greatly improves the mechanical stability.

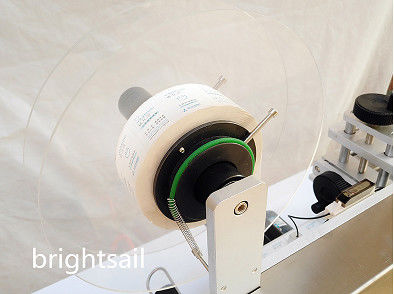

40 Pieces Per Min CE Automatic Round Bottle Labeling Machine 0

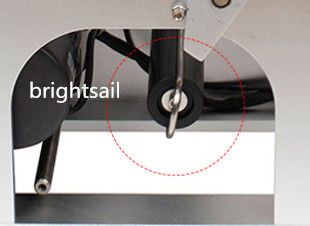

40 Pieces Per Min CE Automatic Round Bottle Labeling Machine 1
