Product Details:
|
| Product Name: | Labelling Bottle Machine | Other Name: | Pet Bottle Label Machine |
|---|---|---|---|
| Material Size: | External Diameter φ 20- φ 100 Mm；high 30-200 Mm200mm | Applicable Label Inner Diameter: | φ76mm |
| Applicable Label Roll Outer Diameter: | Maximum Φ 250mm | Application: | Round Bottle, Can, Cylinder |
| Packaging: | Wooden Case Or Container | ||
| High Light: | 100mm semi automatic labeling machine,ce semi automatic labeling machine,100mm semi automatic bottle labeling machine |
||

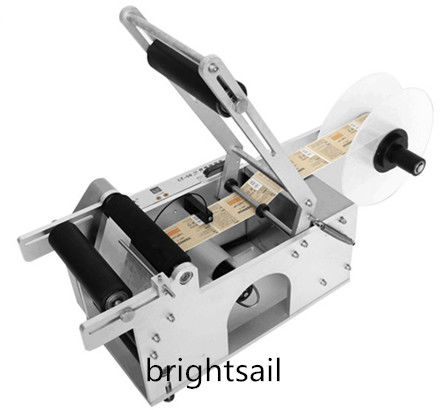

10 To 40 Pieces Per Min Labeling Speed Automatic Adhesive Sticker Labelling Bottle Machine
Introduction:Labelling Bottle Machine
XT-50 automatic bottle labeling machine can take less power drain and space.The color ribbon coder is a table type semi-automatic machine,and brings big improvements in work efficiency.With motor and touching control by limit switch and with small volume, which can be suitable for matching with the vertical filling packing machine .
Application:Labelling Bottle Machine
1. Round bottle, round pot, cylinder and other self-adhesive labels.
2. Applicable to PET bottles, plastic bottles, glass bottles, metal bottles and other round bottle labeling.
3. Widely used in cosmetics, beverages, food, medicine and other industries, greatly improving the production efficiency and labeling quality
Technical Data:Labelling Bottle Machine
|
Model/Technical Parameters
|
XT-50
|
|
Labeling speed
|
10-40 pieces / min (related to material and label size)
|
|
Labeling accuracy
|
±0.5mm(excluding material and label size)
|
|
Material size
|
external diameter φ 20- φ 100 mm；
high 30-200 mm200mm
|
|
Applicable label inner diameter
|
φ76mm
|
|
Applicable label roll outer diameter
|
maximum Φ 250mm
|
|
Using electricity
|
AC220V 50Hz/60Hz 120W
|
|
Overall dimensions
|
(L)650 (W)350 (H)550mm
|
Features:Labelling Bottle Machine
1. Desktop design, simple structure, compact appearance, powerful functions.
2. The use of anodized aluminum alloy bracket and advanced computer white box, beautiful and generous.
3. Adopt Advanced Electric Eye, have higher detection sensitivity to target and label.
4. Wide Application Range, can be used in 20-100mm label roller.
5. High precision labeling, label head and tail joint deviation 0.5 mm.
6. Using a clever extrusion device feeding, just place the workpiece, automatically complete labeling.
7.Using the card position adjustment, easy to switch between different parts labeling.
8. The use of synchronous belt traction, greatly improving the mechanical stability.
