Product Details:
|
| Product Name: | Bottle Labling Machine | Other Name: | Bottle Labeling Machine Semi Automatic |
|---|---|---|---|
| Material Size: | External Diameter φ 20- φ 100 Mm； High 30-200 Mm200mm | Applicable Label Roll Outer Diameter: | Maximum Φ 250mm |
| Application: | Round Bottle, Can, Cylinder | Packaging: | Wooden Case Or Container |
| Advantage: | Cover A Small Area | ||
| High Light: | 20mm Semi Automatic Bottle Labeling Machine,Semi Automatic Bottle Labeling Machine ISO,10pcs/min semi automatic bottle labeling machine |
||
10 To 40 Pieces Per Min Labeling Speed Automatic Adhesive Sticker Bottle Labling Machine

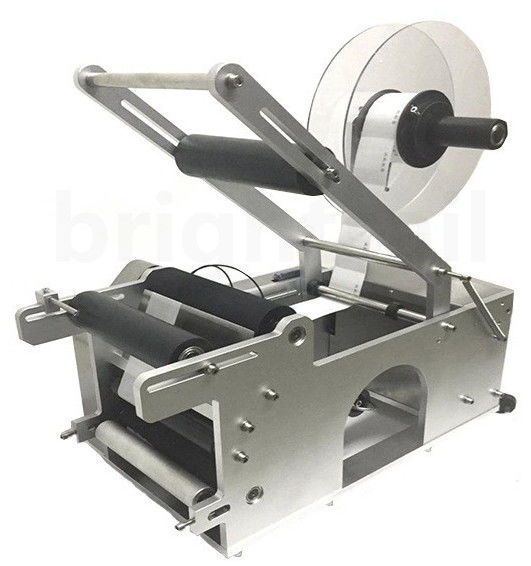

Introduction:Bottle Labling Machine
Xt-50 round bottle labeling machine, low power consumption, small space occupation. Ribbon encoder is a desktop semi-automatic machine, the work efficiency is greatly improved. With motor and limit switch touch control, small volume, can be used with vertical filling and packaging machine.
Application:Bottle Labling Machine
1. Round bottle, round pot, cylinder and other self-adhesive labels.
2. Applicable to PET bottles, plastic bottles, glass bottles, metal bottles and other round bottle labeling.
3. Widely used in cosmetics, beverages, food, medicine and other industries, greatly improving the production efficiency and labeling quality
Technical Data:Bottle Labling Machine
|
Model/Technical Parameters
|
XT-50
|
|
Labeling speed
|
10-40 pieces / min (related to material and label size)
|
|
Labeling accuracy
|
±0.5mm(excluding material and label size)
|
|
Material size
|
external diameter φ 20- φ 100 mm；
high 30-200 mm200mm
|
|
Applicable label inner diameter
|
φ76mm
|
|
Applicable label roll outer diameter
|
maximum Φ 250mm
|
|
Using electricity
|
AC220V 50Hz/60Hz 120W
|
|
Overall dimensions
|
(L)650 (W)350 (H)550mm
|
Features:Bottle Labling Machine
1. Desktop design, simple structure, compact appearance, powerful function.
2. The use of anodized aluminum alloy bracket and advanced computer white box, beautiful and generous.
3. Using advanced electric eye, it has high detection sensitivity for target and label.
4. Wide range of application, can be used for 20-100 mm label roller.
5. The labeling accuracy is high, and the head and tail joint deviation of the label is 0.5 mm. Intelligent extrusion device is used for feeding, only the workpiece needs to be placed, and the labeling can be completed automatically.
6. Adjust the card position to facilitate switching and labeling between different parts.
7. Adopt synchronous belt traction, greatly improve the mechanical stability.
